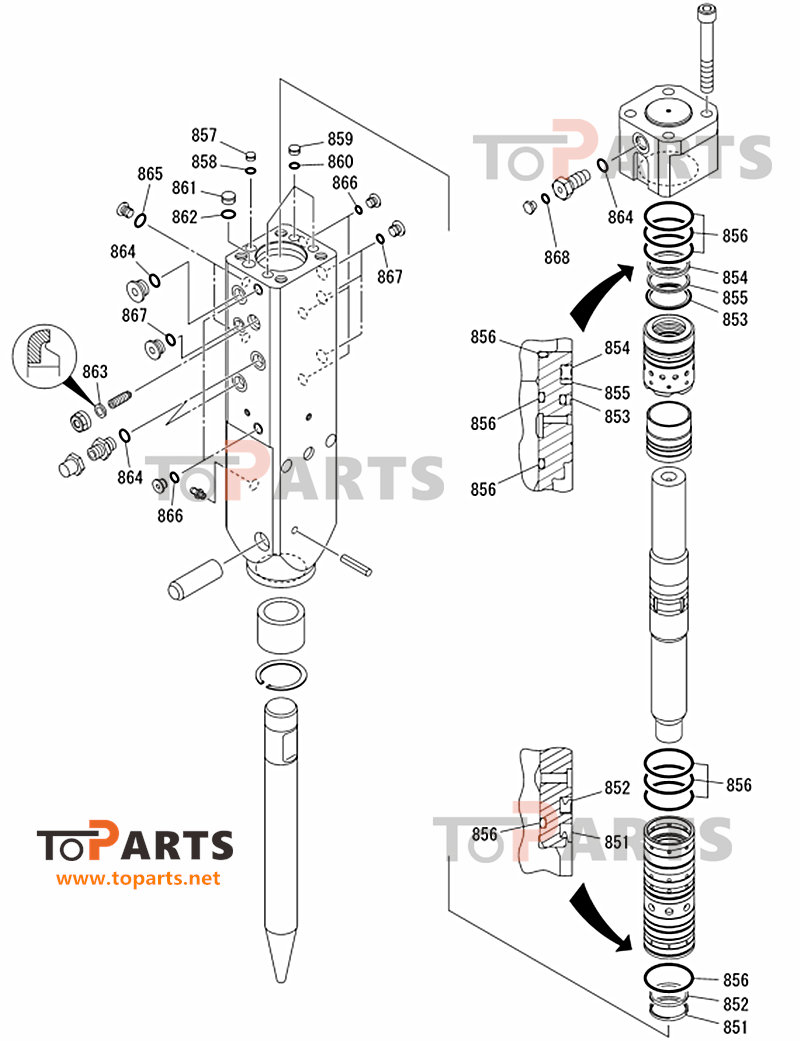

| ITEM | PART NO. | PART NAME | Q’TY |
| 101a | 002307-100010 | CYLINDER | 1 |
| A01 | * | *CYLINDER | 1 |
| A02 | FX35-20103 | *BUSH,FRONT | 1 |
| A03 | 264020-00070 | *RING,SNAP | 1 |
| 102 | 002307-100030 | LINER,CYLINDER | 1 |
| 103 | FX35-10106 | SEAL,DUST | 1 |
| 104 | FX35-10107 | PACKING,U | 1 |
| 105 | 002307-100040 | RETAINER,SEAL | 1 |
| 106 | 002307-100050 | SEAL,STEP | 1 |
| 107 | 002307-100060 | RING,QUAD | 1 |
| 108 | 002307-100070 | RING,BACK-UP | 1 |
| 109 | 161021-00070 | O-RING | 6 |
| 110 | FX35-10120 | PLUG | 1 |
| 111 | 160011-10010 | O-RING | 1 |
| 112 | FX35-10122 | PLUG | 3 |
| 113 | 160011-00012 | O-RING | 3 |
| 114 | FX35-10220 | PLUG | 1 |
| 115 | 160011-00016 | O-RING | 1 |
| 116 | FX35-10231 | ADJUSTER | 1 |
| 117 | FX35-10233 | NUT,SEAL | 1 |
| 118 | FX35-10532 | WASHER,SEAL | 1 |
| 119 | 084861-04000 | CONNECTOR,MALE | 2 |
| 120 | 084898-04000 | CAP,UNION | 2 |
| 121 | 160011-00018 | O-RING | 3 |
| 122 | 084891-01000 | PLUG,GPF | 2 |
| 123 | 160011-00008 | O-RING | 2 |
| 124 | 084891-02000 | PLUG,GPF | 5 |
| 125 | 160011-00011 | O-RING | 5 |
| 126 | 084891-03000 | PLUG,GPF | 4 |
| 127 | 160011-00014 | O-RING | 4 |
| 128 | 084891-04000 | PLUG,GPF | 1 |
| 129 | FX35-20206 | PIN,ROD | 1 |
| 130 | 154037-10060 | PIN,SPRING | 1 |
| 131 | 170312-00000 | NIPPLE,GREASE | 1 |
| 151 | 002307-110010 | PISTON | 1 |
| 201 | 002307-130010 | VALVE | 1 |
| 381 | FX35-25111 | ROD,FLAT | 1 |
| 381 | FX35-25113 | POINT,MOIL | 1 |
| 381 | FX35-25114 | POINT,WEDGE | 1 |
| 381 | FX35-25115 | ROD,CONE | 1 |
| 381 | FX35-25116 | ROD,BALLPOINT | 1 |
| 401 | 002307-300010 | HEAD,BACK | 1 |
| 402 | 102032-18150 | BOLT,SOCKET | 4 |
| 403 | 161021-00070 | O-RING | 1 |
| 404 | FX35-30103 | VALVE,CHARGING | 1 |
| 405 | FX35-30109 | PLUG | 1 |
| 406 | 160011-00006 | O-RING | 1 |
| 407 | 160011-00018 | O-RING | 1 |

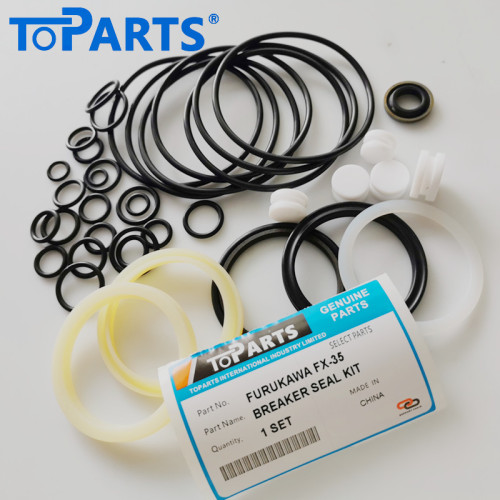

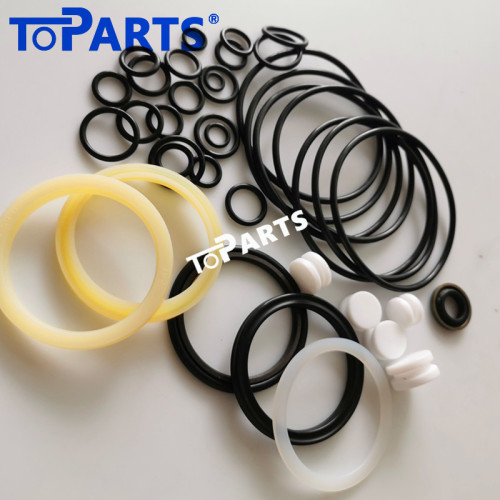

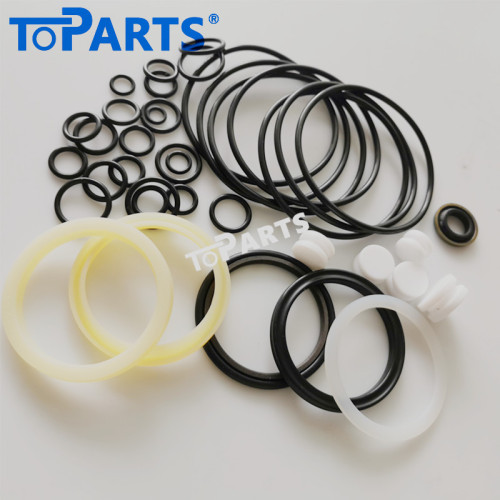

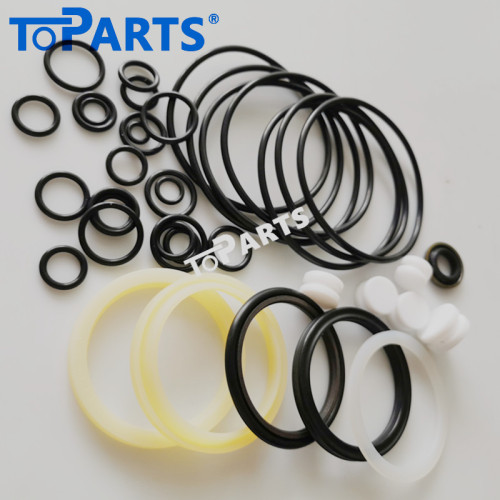

| 902307-920010 | SEAL KIT | 1 | |
| 851 | FX35-10106 | *SEAL,DUST | 1 |
| 852 | FX35-10107 | *PACKING,U | 1 |
| 853 | 002307-100050 | *SEAL,STEP | 1 |
| 854 | 002307-100060 | *RING,QUAD | 1 |
| 855 | 002307-100070 | *RING,BACK-UP | 1 |
| 856 | 161021-00070 | *O-RING | 7 |
| 857 | FX35-10120 | *PLUG | 1 |
| 858 | 160011-10010 | *O-RING | 1 |
| 859 | FX35-10122 | *PLUG | 3 |
| 860 | 160011-00012 | O-RING | 3 |
| 861 | FX35-10220 | *PLUG | 1 |
| 862 | 160011-00016 | *O-RING | 1 |
| 863 | FX35-10532 | *WASHER,SEAL | 1 |
| 864 | 160011-00018 | *O-RING | 4 |
| 865 | 160011-00008 | *O-RING | 2 |
| 866 | 160011-00011 | *O-RING | 5 |
| 867 | 160011-00014 | *O-RING | 4 |
| 868 | 160011-00006 | *O-RING | 1 |
