Item |
Part No. |
Name |
Qty |
|
1 |
- |
Breaker body |
1 |
|
2 |
3315353980 |
Bushing standard, complete |
1 |
|
3 |
-- |
Bushing, |
1 |
|
4 |
3315356400 |
Scraper ring |
1 |
|
5 |
0663210289 |
O-ring, |
4 |
|
6 |
3315291800 |
Stop ring |
1 |
|
7 |
0686100009 |
Plug, |
1 |
|
8 |
0686644207 |
PLUG |
6 |
|
9 |
3315395200 |
Water Nossle |
1 |
|
10 |
3315293000 |
Lock pin |
1 |
|
11 |
0108169126 |
Spring pin, option |
1 |
|
12 |
3315147000 |
Retainer bar |
2 |
|
13 |
3315141900 |
LOCK BUFFER |
1 |
|
14 |
0686371801 |
PLUG |
4 |
|
15 |
3315293300 |
Coil spring |
1 |
|
16 |
3315288900 |
Diaphragm support |
1 |
|
17 |
3315289000 |
Diaphragm |
1 |
|
18 |
3315282400 |
Accumulator house |
1 |
|
19 |
0211196534 |
HEX SOCK. SCREW |
8 |
|
20 |
0686371805 |
PLUG |
1 |
|
21 |
3115329002 |
SEAL RING |
1 |
|
22 |
0663212000 |
O-RING |
1 |
|
23 |
3315366000 |
VALVE |
1 |
|
24 |
0663211400 |
O-RING |
1 |
|
25 |
0101414000 |
PIN |
1 |
|
26 |
0580001846 |
PIPE COUPLING |
1 |
|
27 |
-- |
Nipple |
1 |
|
28 |
0664000003 |
Seal ring |
1 |
|
29 |
0663905501 |
O-RING |
|
|
30 |
0570700019 |
CAP |
2 |
|
31 |
3315364000 |
Valve cover |
1 |
|
32 |
0663211490 |
O-ring |
2 |
|
33 |
3315291900 |
Control valve |
1 |
|
34 |
0665090014 |
SEAL RING |
2 |
|
35 |
3315305000 |
Plug |
1 |
|
36 |
3315335000 |
Pressure relief valve, complete |
1 |
|
37 |
-- |
Pressure relief valve |
1 |
|
38 |
0663903201 |
O-RING |
1 |
|
39 |
0663905401 |
O-ring, |
1 |
|
40 |
3315369551 |
Restrictor standard, complete |
1 |
|
41 |
0663905401 |
O-ring, |
1 |
|
42 |
0663903201 |
O-RING |
1 |
|
43 |
-- |
Restrictor, |
1 |
|
44 |
0544215300 |
GREASE NIPPLE |
1 |
|
45 |
0665909954 |
Wiper |
1 |
|
46 |
0665070131 |
Piston rod seal |
1 |
|
47 |
0663211456 |
O-ring, |
5 |
|
48 |
0663210631 |
O-RING |
1 |
|
49 |
3315291300 |
Liner |
1 |
|
50 |
0663210053 |
O-RING |
4 |
|
51 |
3315291700 |
Piston |
1 |
|
52 |
0665070132 |
Piston rod seal |
1 |
|
53 |
3315293900 |
Back head |
1 |
|
54 |
3315244881 |
CHECK VALVE |
1 |
|
55 |
-- |
Check valve |
1 |
|
56 |
3315280800 |
VALVE RUBBER |
1 |
|
57 |
0147148103 |
SCREW, HEX HEAD |
8 |
|
58 |
3315304300 |
Base plate with through borings |
1 |
|
59 |
3315296490 |
Bolt kit |
1 |
|
60 |
-- |
Screw |
8 |
|
61 |
-- |
Nut, M16 |
8 |

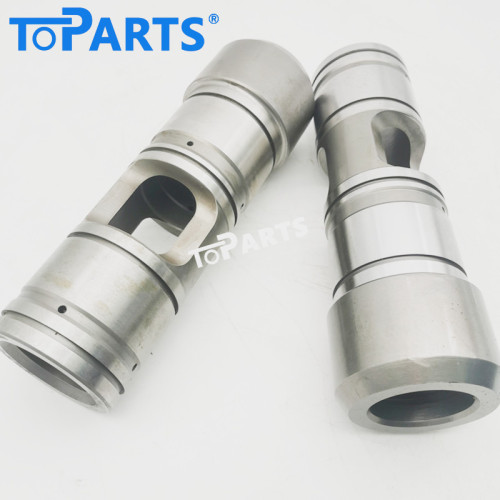

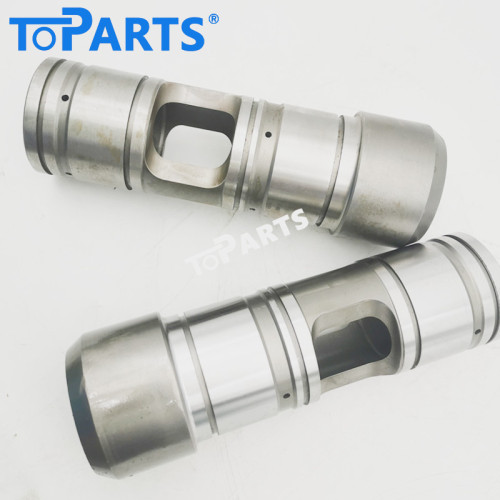

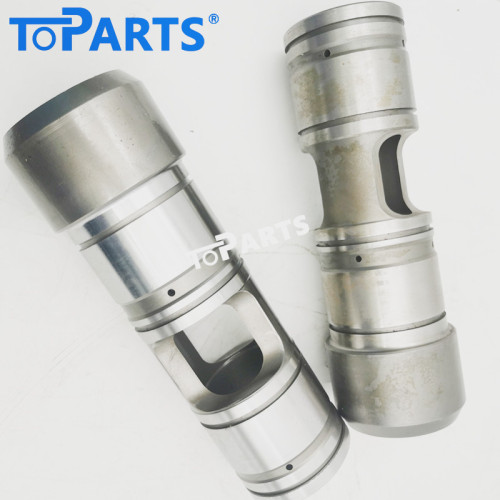

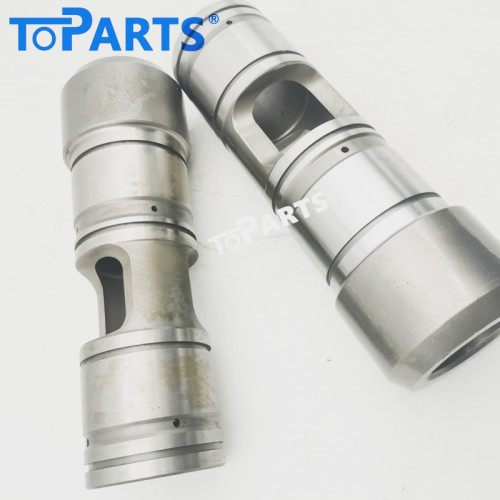

Toparts 3315353980 Hydraulic Breaker Bushing for Atlas Copco SB152
Maintain the precision, alignment, and longevity of your hydraulic hammer with the Toparts 3315353980 Hydraulic Breaker Bushing. This critical wear part is specifically engineered for the Atlas Copco SB152 Hydraulic Hammer, ensuring proper guiding of the working tool and piston.
Engineered for Atlas Copco SB152 Durability
The bushing bears the immense forces and constant friction generated by the piston and tool during every impact cycle. A worn bushing leads to misalignment, energy loss, and rapid damage to both the tool and the piston. The Toparts 3315353980 bushing is a high-precision, direct aftermarket replacement, meticulously crafted to meet or exceed OEM specifications for the SB152.
Key Features and Benefits:
Direct OEM Replacement: This bushing is a seamless replacement for the Atlas Copco OEM part number 3315353980, guaranteeing perfect fitment and precise internal alignment within your SB152 hammer.
Exceptional Wear Resistance: Manufactured from high-quality, specialized materials with excellent surface hardness and lubricity, the bushing is built to withstand extreme friction, heat, and shock loads, extending service life.
Restores Impact Efficiency: Proper alignment guided by a new bushing ensures that the piston's energy is efficiently transferred to the tool, maximizing the hammer's impact force and effectiveness.
Protects Major Components: By maintaining correct tool and piston guidance, the bushing prevents lateral stresses and reduces wear on expensive components like the piston and lower cylinder.
Cost-Effective Maintenance: Regular replacement of wear parts like the bushing is the most economical way to prevent cascading failures in the hydraulic hammer.
Product Details:
Part Number (Bushing): 3315353980
Component Type: Hydraulic Breaker Bushing / Guiding Bushing
Compatible Model: Atlas Copco SB152 Hydraulic Hammer / Breaker
Application: Tool/Piston Guidance and Alignment
Manufacturer: Toparts
Don't compromise the accuracy or lifespan of your hydraulic hammer. Invest in the trusted quality and precision of the Toparts 3315353980 Hydraulic Breaker Bushing and keep your Atlas Copco SB152 operating reliably.
