| Item | Part No. | Part Name | Qty |
| G-1 | 707-01-XP300 | CYLINDER GROUP,(FINAL COATING) | 1 |
| 707-01-0K300 | CYLINDER ASS'Y | 1 | |
| 1 | 721-13-18010 | CYLINDER | 1 |
| 2 | 707-58-13280 | ROD,PISTON | 1 |
| 3 | 707-76-11130 | BUSHING | 1 |
| 4 | 07145-00110 | SEAL,DUST (KIT) | 2 |
| 5 | 07043-00108 | PLUG | 1 |
| 6 | 707-76-11130 | BUSHING | 1 |
| 7 | 07145-00110 | SEAL,DUST (KIT) | 2 |
| 8 | 707-71-35060 | COLLAR | 1 |
| 9 | 707-35-91840 | RING,BACK-UP (KIT) | 2 |
| 10 | 07000-15175 | O-RING (KIT) | 1 |
| 11 | 707-71-61430 | PLUNGER | 1 |
| 12 | 707-27-18180 | HEAD,CYLINDER | 1 |
| 13 | 707-56-13520 | SEAL,DUST (KIT) | 1 |
| 14 | 07179-14146 | RING | 1 |
| 15 | 707-51-13030 | PACKING,ROD (KIT) | 1 |
| 16 | 707-51-13650 | RING,BUFFER (KIT) | 1 |
| 17 | 707-52-91070 | BUSHING | 1 |
| 18 | 707-35-91840 | RING,BACK-UP (KIT) | 1 |
| 19 | 07000-15175 | O-RING (KIT) | 1 |
| 20 | 07179-13136 | RING,SNAP | 1 |
| 21 | 01011-82400 | BOLT | 12 |
| 22 | 707-88-75410 | WASHER | 12 |
| 23 | 707-36-18530 | PISTON | 1 |
| 24 | 07001-05120 | RING,BACK-UP (KIT) | 2 |
| 25 | 07000-B5120 | O-RING (KIT) | 1 |
| 26 | 707-44-18290 | RING,PISTON (KIT) | 1 |
| 27 | 707-39-18510 | RING,WEAR (KIT) | 2 |
| 28 | 707-44-18920 | RING | 2 |
| 29 | 01310-01225 | SCREW | 1 |
| 30 | 707-88-33040 | CAP,FOR SHIPPING | 2 |
| 31 | 07371-31049 | FLANGE,FOR SHIPPING | 4 |
| 32 | 07372-21035 | BOLT,FOR SHIPPING | 8 |
| 33 | 01643-51032 | WASHER,FOR SHIPPING | 8 |
| 34 | 707-86-13510 | TUBE | 1 |
| 35 | 209-63-73582 | TUBE | 1 |
| 36 | 707-88-28440 | BRACKET | 1 |
| 37 | 707-88-28450 | BRACKET | 1 |
| 38 | 707-88-26170 | BAND | 1 |
| 39 | 707-88-26180 | BAND | 1 |
| 40 | 07372-21250 | BOLT | 8 |
| 41 | 01643-51232 | WASHER | 8 |
| 42 | 07372-21060 | BOLT | 8 |
| 43 | 01643-51032 | WASHER | 8 |
| 44 | 07000-13035 | O-RING (KIT) | 2 |
| 45 | 07283-33442 | CLIP | 3 |
| 46 | 01597-01009 | NUT | 6 |
| 47 | 01643-31032 | WASHER | 6 |
| 48 | 07371-51260 | FLANGE,FOR SHIPPING | 4 |
| 49 | 01010-81245 | BOLT,FOR SHIPPING | 8 |
| 50 | 01643-31232 | WASHER,FOR SHIPPING | 8 |
| 51 | 07378-11210 | HEAD,FOR SHIPPING | 2 |
| 52 | 07000-13038 | O-RING | 2 |

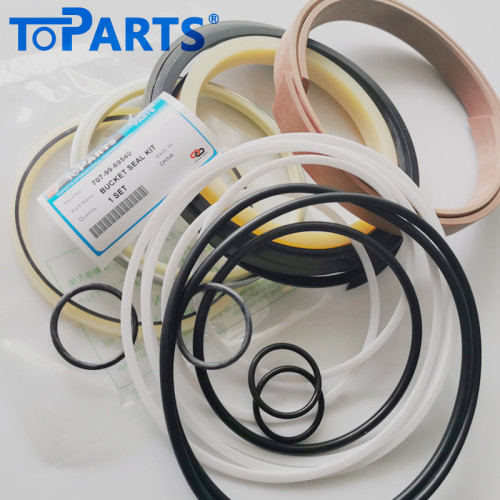

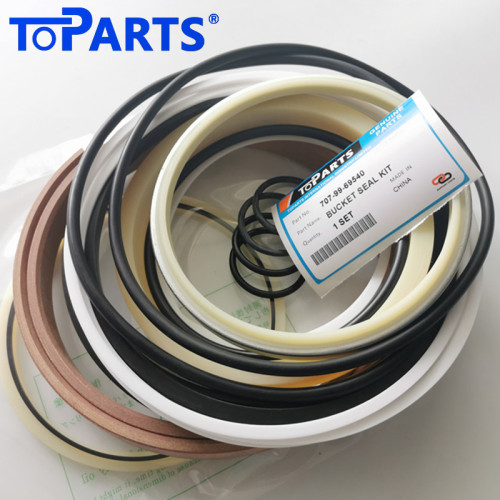

| 707-99-69540 | SERVICE KIT | 1 |
