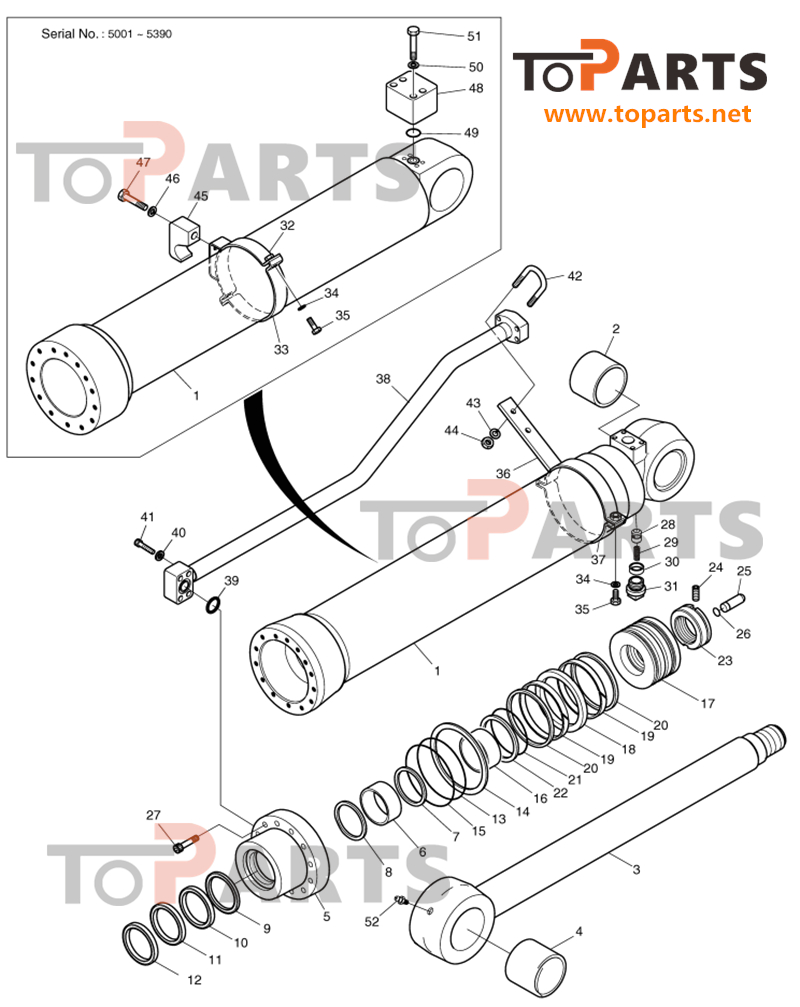

Parts list
|
Key No |
Part No |
Description |
Qty |
|
- |
K1006627 |
CYLINDER;ARM |
1 |
|
- |
K1006627A |
CYLINDER;ARM |
1 |
|
1 |
K9001879 |
TUBE ASS`Y |
1 |
|
1 |
K9001879A |
TUBE ASS'Y |
1 |
|
2 |
K1000737 |
BUSH |
1 |
|
3 |
K9001880 |
ROD ASS`Y |
1 |
|
4 |
K1000737 |
BUSH |
1 |
|
5 |
K9001881 |
COVER;ROD |
1 |
|
6 |
110-00081 |
DD-BUSH |
1 |
|
7 |
115-00073 |
RING;RETAINING |
1 |
|
8 |
K9001882 |
SEAL;BUFFER |
1 |
|
9 |
K9001883 |
U-PACKING |
1 |
|
10 |
K9001884 |
RING;BACK UP |
1 |
|
11 |
115-00077 |
WIPER;DUST |
1 |
|
12 |
115-00078 |
RING;RETAINING |
1 |
|
13 |
S8011351 |
O-RING |
1 |
|
14 |
1.180-00662 |
RING;BACK UP |
1 |
|
15 |
2180-1217D96 |
O-RING |
1 |
|
16 |
K9001893 |
RING;CUSHION |
1 |
|
17 |
K9001894 |
PISTON |
1 |
|
18 |
K9001148 |
SEAL;SLIPPER |
1 |
|
19 |
115-00079 |
RING;WEAR |
2 |
|
20 |
K9001149 |
RING;DUST |
2 |
|
21 |
S8010801 |
O-RING |
1 |
|
22 |
K9001895 |
RING;BACK UP |
2 |
|
23 |
K9001896 |
NUT;PISTON |
1 |
|
24 |
1.120-00219 |
SCREW;SET |
1 |
|
25 |
K9001897 |
PLUNGER;CUSHION |
1 |
|
26 |
115-00081 |
RING;STOP |
1 |
|
27 |
S2222272 |
BOLT |
14 |
|
28 |
1.420-00050 |
VALVE;CHECK |
1 |
|
29 |
129-00071 |
SPRING |
1 |
|
30 |
1.195-00022 |
SUPPORT,SPRING |
1 |
|
31 |
2181-1116D3 |
PLUG |
1 |
|
32 |
K9001899 |
PIPE BAND ASS`Y-A |
1 |
|
33 |
124-00052 |
BAND;PIPE |
1 |
|
34 |
S5100703 |
WASHER;SPRING |
4 |
|
34 |
S5100703 |
WASHER;SPRING |
2 |
|
35 |
S0560563 |
BOLT |
4 |
|
35 |
S0560563 |
BOLT |
2 |
|
36 |
K9001898 |
PIPE BAND ASS'Y-B |
1 |
|
37 |
124-00052 |
BAND;PIPE |
1 |
|
38 |
K9001900 |
PIPE ASS`Y-R |
1 |
|
39 |
S8000341 |
O-RING |
1 |
|
40 |
S5100703 |
WASHER;SPRING |
4 |
|
41 |
S2215961 |
BOLT;SOCKET |
4 |
|
42 |
K9001158 |
U-BOLT |
1 |
|
43 |
S5100603 |
WASHER |
2 |
|
44 |
S4012633 |
NUT |
2 |
|
45 |
K9001159 |
CLAMP;PIPE |
1 |
|
46 |
S5102903 |
WASHER |
1 |
|
47 |
S0521853 |
BOLT |
1 |
|
48 |
K9001173 |
PORT;FLANGE |
1 |
|
49 |
S8000341 |
O-RING |
1 |
|
50 |
S5100603 |
WASHER |
4 |
|
51 |
S2213261 |
BOLT |
4 |
|
52 |
S6710032 |
NIPPLE;GREASE |
1 |
|
* |
K9001901 |
SEAL KIT;ARM CYLINDER |
1 |
Our advantage: original system data to ensure accurate size
Our customers

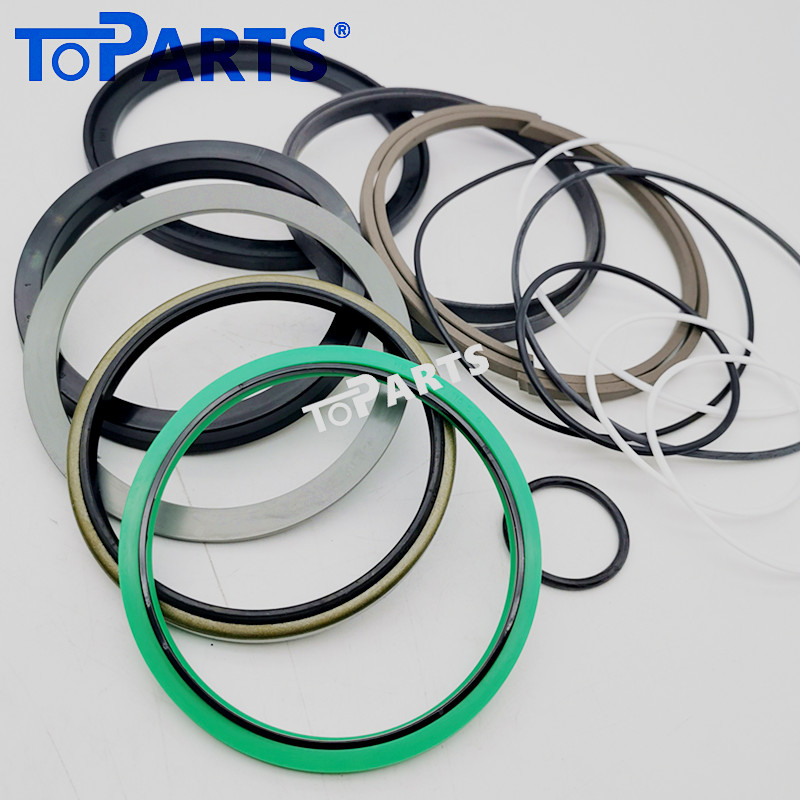

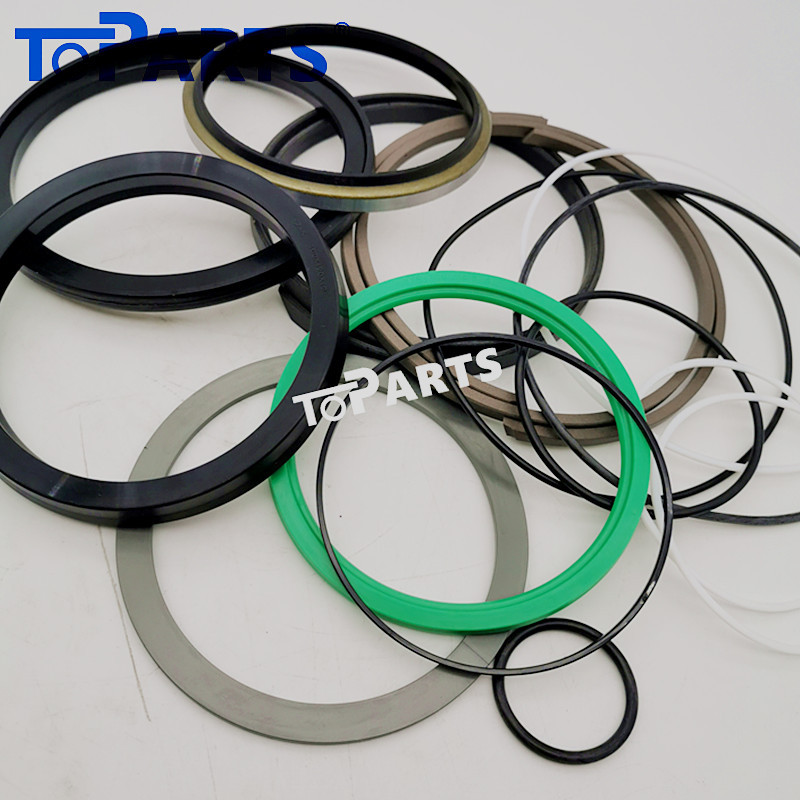

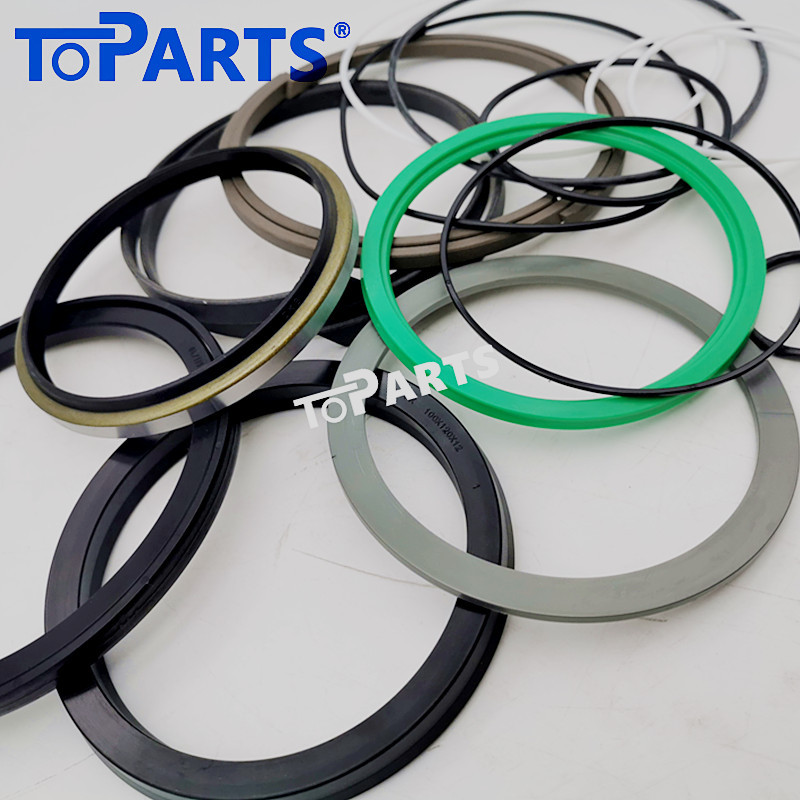

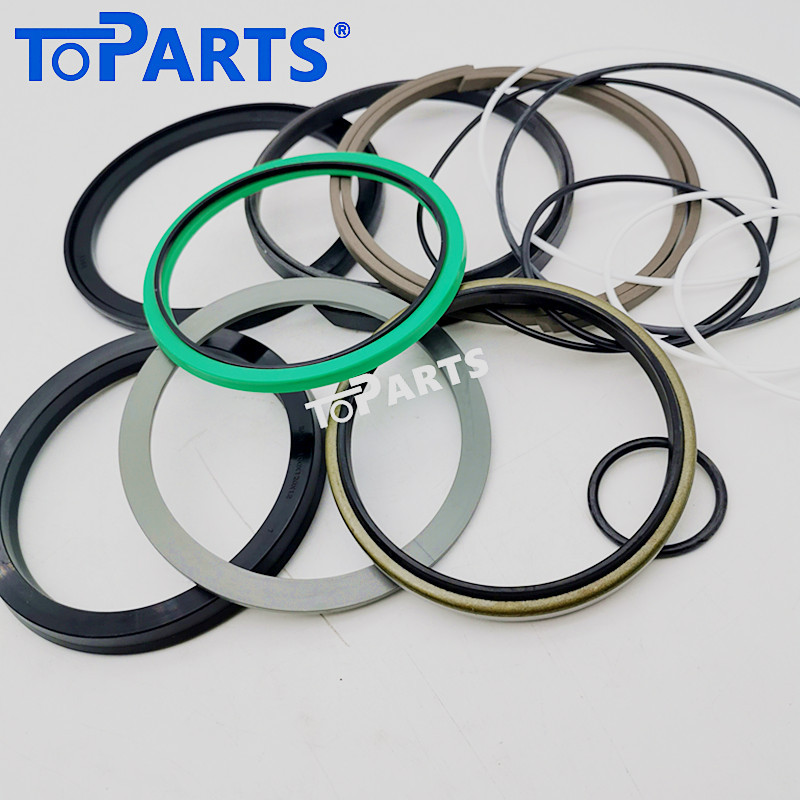

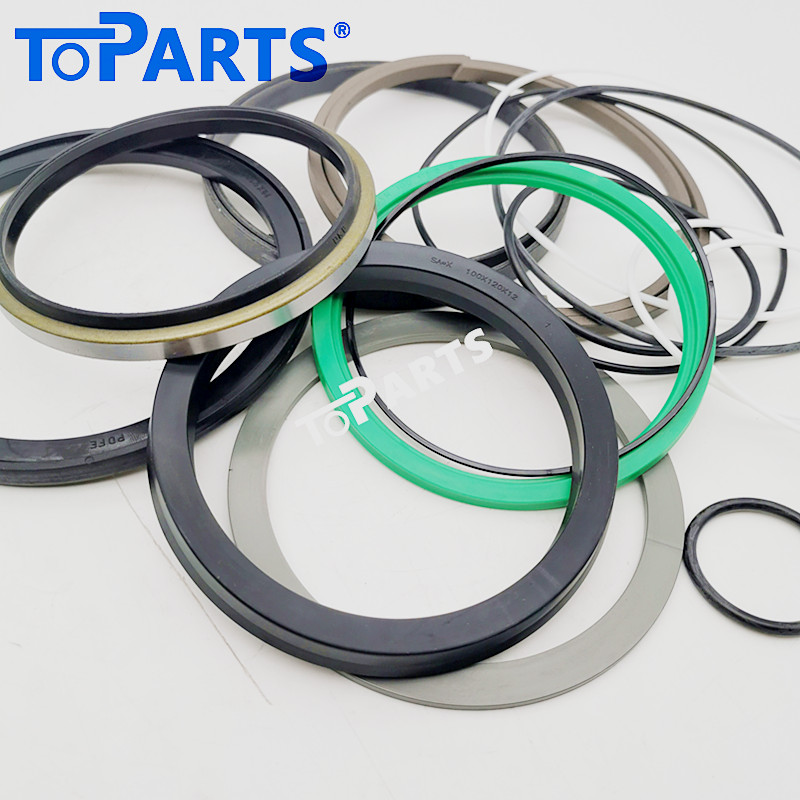

Toparts K9001901 Hydraulic Cylinder Seal Kit
Premium sealing solution for Doosan excavators
Compatibility:
Doosan DX225LC/DX230LC excavator arm cylinders
Matches OEM cylinder No: 1006627
Key Features:
OEM-standard quality – Precision-engineered seals ensure leak-free performance
Complete kit – Includes all necessary seals/gaskets for full cylinder maintenance
Durable materials – Weather/wear-resistant for extended service life
Easy installation – Simplified repair process to minimize downtime
Why Choose Toparts?
As a specialist in hydraulic components, Toparts combines rigorous testing with cost-effective solutions. This seal kit reflects our commitment to:
Reliability – Stable performance under heavy workloads
Global standards – Meets international quality benchmarks
Note: For optimal hydraulic system performance, replace all seals simultaneously using this complete kit.
