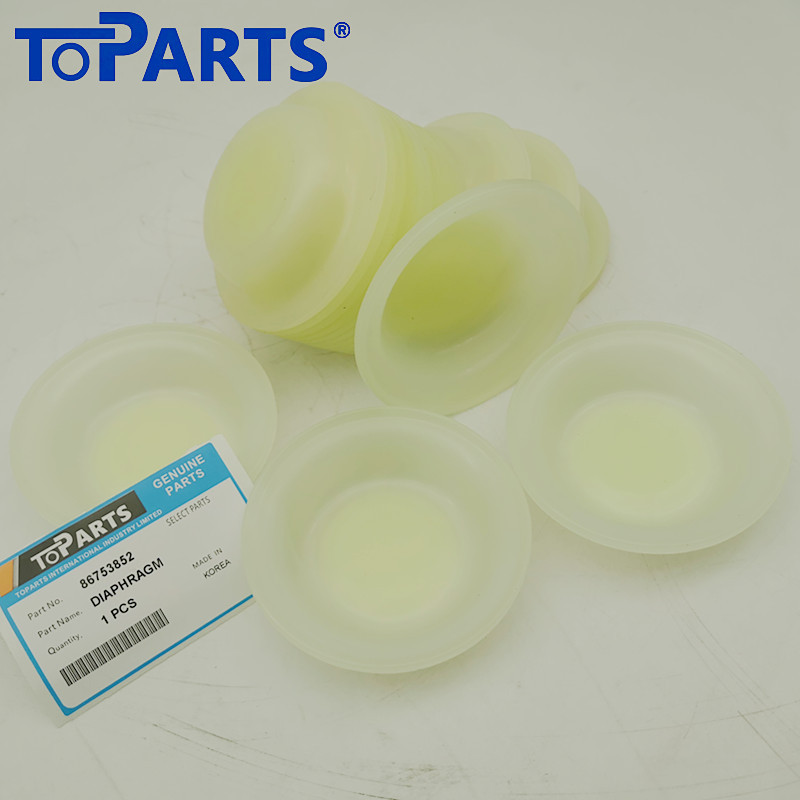

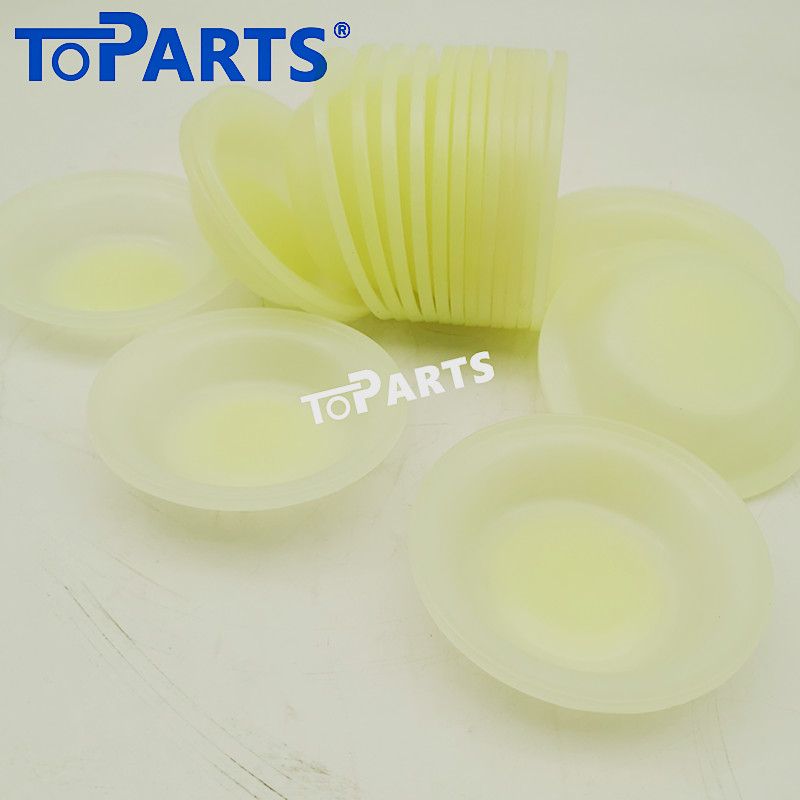

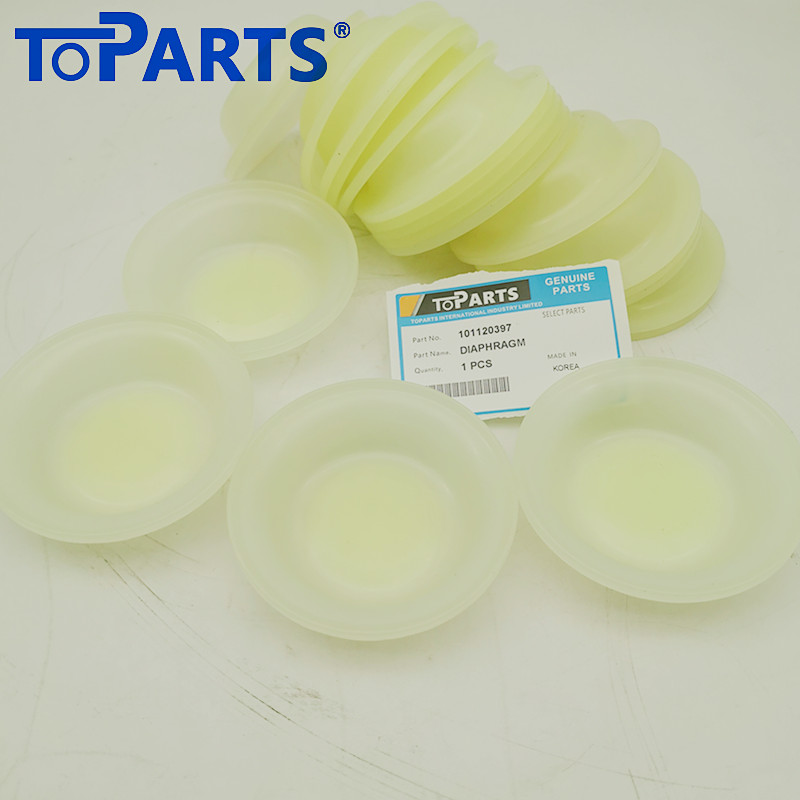

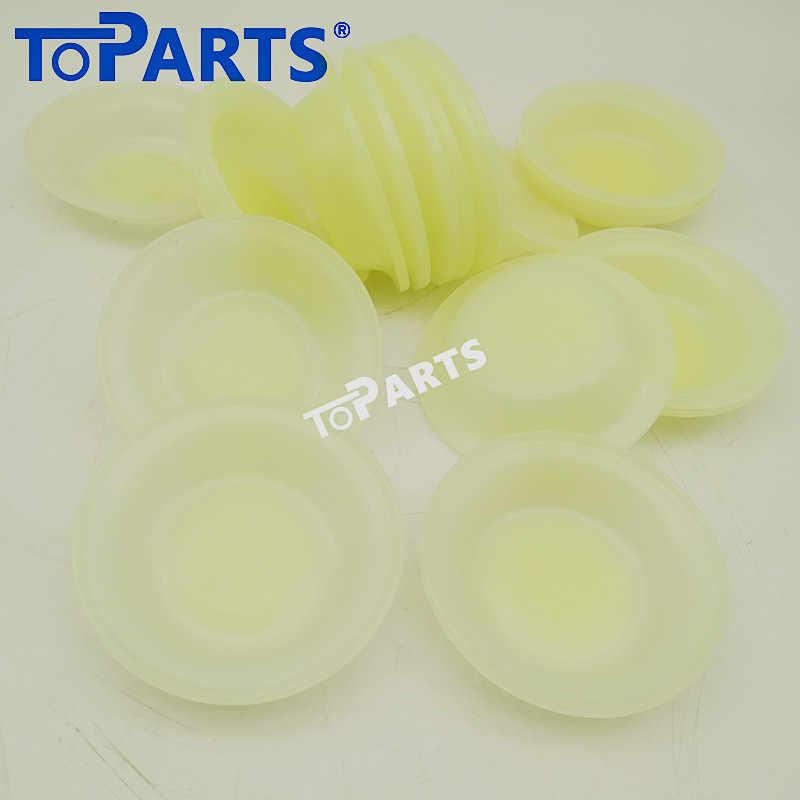

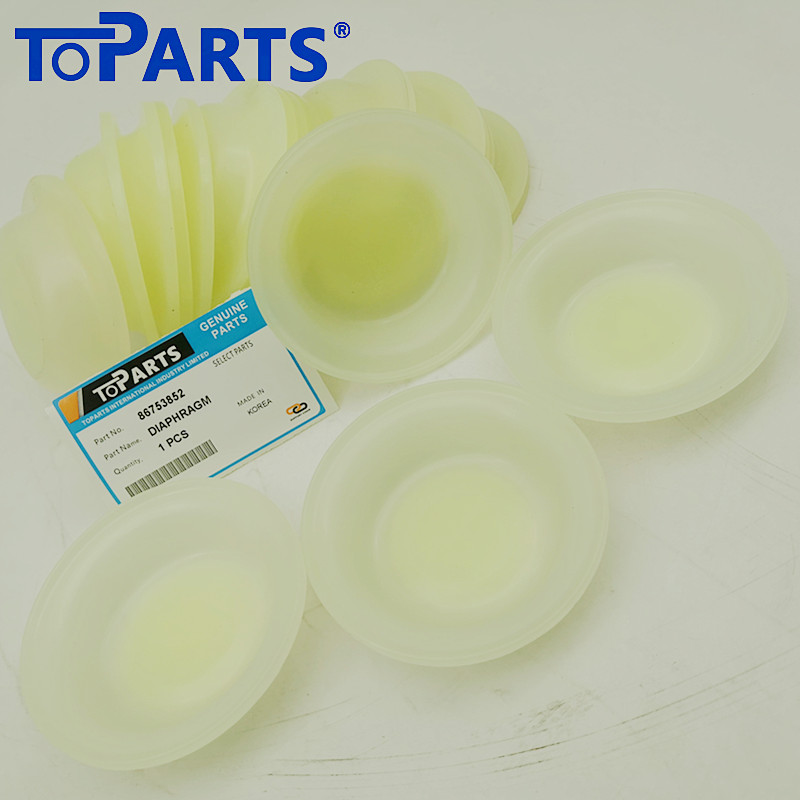

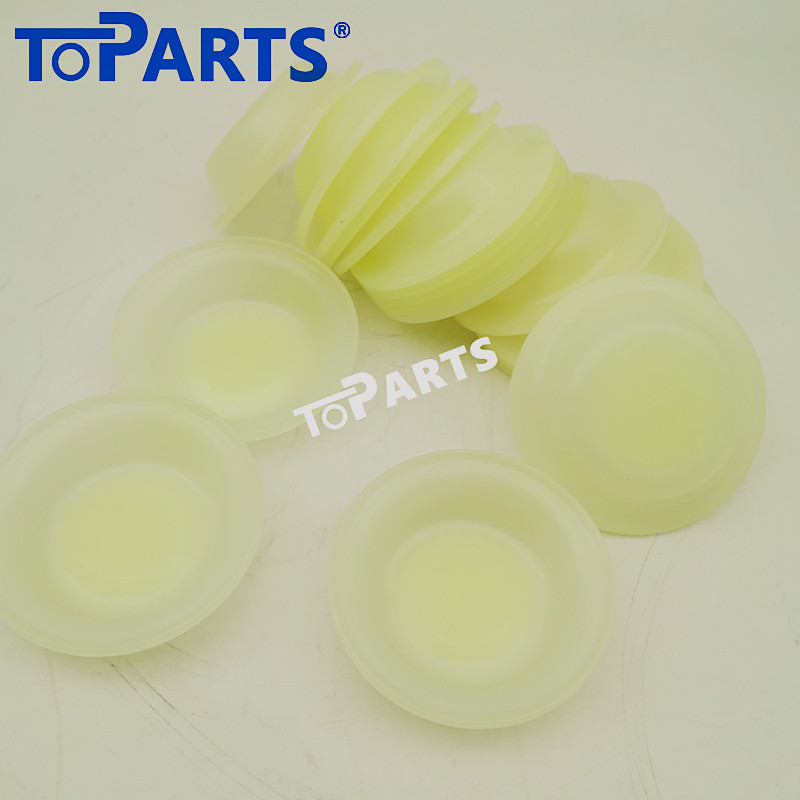

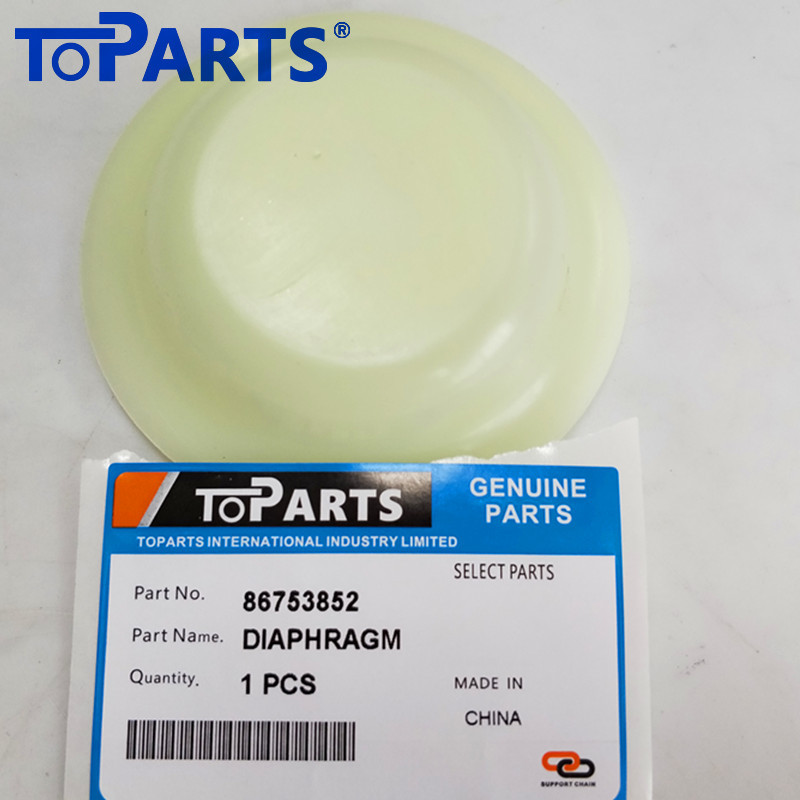

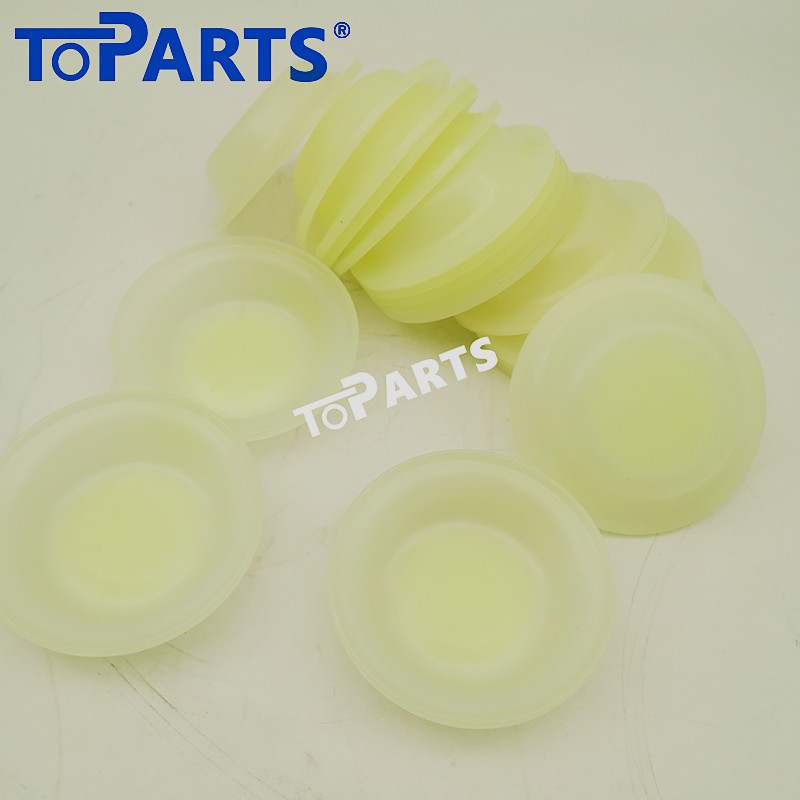

Name: 86723764 86753852 101120397 Diaphragm for MONTABERT HC95 Hydraulic Rock Drill
Brand: TOPARTS
SKU: TP0286
Price: 95.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Home > Diaphragm/Membrane > Montabert

86723764 86753852 101120397 Diaphragm for MONTABERT HC95 Hydraulic Rock Drill

Description Review

Description

Model:MONTABERT HC95 Hydraulic Rock Drill

Part Name:86723764,86753852,101120397 Hydraulic Rock Drill diaphragm/membrane

Part Number:86723764

Position:Accumulator Group

Material:HNBR, TPU

Certification:IOS 9001

Packaging Details:bag or box carton

Delivery Time:2-5days upon payments confirmed

Brand:TOPARTS, OEM or as Required

Payment Terms:TT/Paypal/WEST UNION

Supply Ability:200PCS

MOQ:1pcs

Parts list

NO.	Quantity	Part Number	Product Name
10	1	86748043	Injection nozzle
20	1	86748050	Flange
30	1	86748068	Packing
40	1	86235538	Rush
50	1	86748100	Guiding ring
60	1	86748001	Quick change nozzle
70	1	86748076	Packing
80	2	86262698	Lip seal
90	1	86726668	Lip seal
100	1	86411832	Adapter
110	1	86688702	BS ring
120	1	86747995	Front guide
130	2	86754611	O’ring
140	3	86754900	O’ring
150	1	86748035	RP Retainer socket
160	1	86748019	RP Liner
170	3	86754918	O’ring
180	1	86752284	Seal
190	1	86752292	Seal
200	4	86688785	UNF ¾”, Nut
10	1	86746419	Main body incl.
10a	4	86264678	( Thread UNF 3/4”
10b	6	86249067	( Thread UNF 5/8”
10c	26	86269115	( Thread UNF 1/2”
20	2	86580966	Plug
30	2	86600632	Inflate valve
40	14	86751401	UNF ½”, socket head screw
50	1	86746492	Cover
60	2	86753852	Diaphragm kit
70	1	86746450	Front bearing
80	1	86746542	O’ring
90	2	86503562	Needle bearing
100	1	86746443	Pre - equipped gear drive incl. :
100a	1	86746427	( Splined shank
110	1	86746534	Centering tool
120	1	86675998	O’ring
130	4	86746526	UNF ¾” , Stud
140	1	86746484	Cover
150	1	86668993	O’ring
160	1	86746559	Needle bearing
170	1	86746468	Hub motor gear
180	1	86746476	Gear
190	1	86746567	Needle bearing
200	1	86386505	Plug
210	1	86746518	Pin adapter
220	1	86746500	Ring
230	1	86222858	O’ring
240	1	86309424	O’ring
250	1	86613437	Adapter
260	1	86247723	Plug
270	4	86748753	UNF ¾”, socket head screw
280	1	86758208	Hose
290	2	86758398	Plug
20	1	86747250	Adapter drain
30	1	86752441	Seal
40	1	86752458	Seal
50	1	86747284	Valve - BP
60	1	86747292	Seat valve
70	2	86747276	Valve - HP
80	4	86492048	UNF %”, socket head screw
90	2	95267340	UNF %”, Hex. screw
100	1	86237609	O’ring
110	2	86281938	O’ring
120	1	86278835	O’ring
130	1	86754470	Rush
140	1	86221991	Elastic pin
150	1	86758414	Pin
160	2	86754645	Adapter
170	2	86261187	O’ring
180	2	86250636	Plug
190	1	86247723	Plug

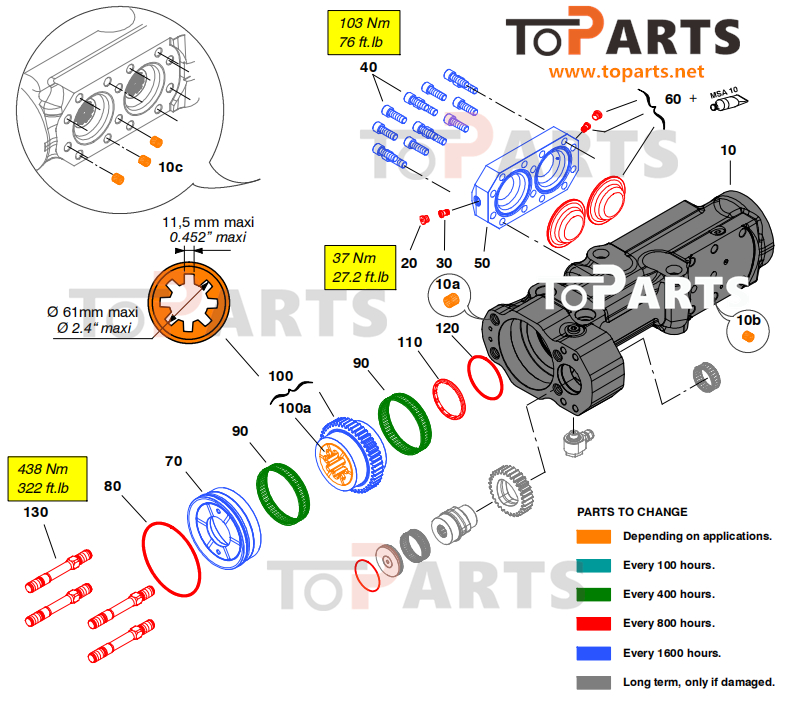

Exploded view

Our customers

Toparts, a leading manufacturer and supplier of high-performance hydraulic rock drill components, proudly presents the ‌86723764 MONTABERT HC95 Hydraulic Rock Drill Diaphragm‌. Engineered to meet the rigorous demands of heavy-duty drilling operations, this diaphragm is a critical component designed to ensure optimal performance, durability, and reliability in the MONTABERT HC95 hydraulic rock drill system.

‌Product Overview‌

The 86723764 diaphragm serves as a vital sealing element within the hydraulic rock drill’s pressure regulation system. Crafted from advanced elastomeric materials, it is built to withstand high-pressure hydraulic fluids, extreme temperatures, and abrasive conditions commonly encountered in mining, quarrying, and construction applications. Its precision design ensures consistent pressure control, minimizing energy loss and enhancing the overall efficiency of the drilling process.

‌Key Features‌

‌Robust Material Composition‌: Manufactured using premium-grade nitrile rubber (NBR) or polyurethane (PU), the diaphragm offers exceptional resistance to wear, oil, and corrosion.

‌Precision Engineering‌: Tailored to exact specifications for the MONTABERT HC95 model, it guarantees seamless compatibility and flawless integration with the drill’s hydraulic system.

‌Extended Service Life‌: Reinforced structural design reduces fatigue and deformation, ensuring longevity even under continuous operation.

‌Easy Maintenance‌: Simplified installation and replacement processes minimize downtime, boosting operational productivity.

‌Applications‌

This diaphragm is specifically designed for use in the MONTABERT HC95 hydraulic rock drill, a trusted equipment choice for:

Surface and underground mining operations

Tunneling and infrastructure projects

Quarrying and rock excavation

‌Quality Assurance‌

Topars adheres to stringent international quality standards (ISO-certified processes) to deliver components that exceed industry expectations. Each diaphragm undergoes rigorous testing for pressure resistance, flexibility, and leak-proof performance, ensuring reliability in the harshest environments.

‌Global Availability‌

Toparts’ extensive distribution network guarantees prompt delivery of genuine 86723764 diaphragms to customers worldwide. Partnering with authorized dealers and service centers, we provide comprehensive technical support and after-sales services to maintain the peak performance of your equipment.

‌Why Choose Toparts?‌

OEM-quality components at competitive pricing

Customized solutions for specialized drilling needs

Commitment to sustainability and innovation

For inquiries or orders, contact Topars today to experience unparalleled quality and expertise in hydraulic drill components.

This description balances technical details with commercial appeal, targeting engineers, procurement managers, and distributors seeking reliable replacement parts for hydraulic rock drills. Let me know if you need adjustments!
Tag:Boom seal kit,hydraulic cylinder seals,Bucket seal kit,Komatsu Service Seal kit,Wheel loaders cylinder seal kit
