Name: 707-99-47130 Hydraulic Cylinder Seal Kit for Komatsu PC200-8 Excavator Hydraulic Bucket Cylinder Ser
Brand: TOPARTS
SKU: TP0305
Price: 19.00 USD
Availability: InStock
Rating: 5 (1 reviews)

Home > Excavator seal kit > Komatsu

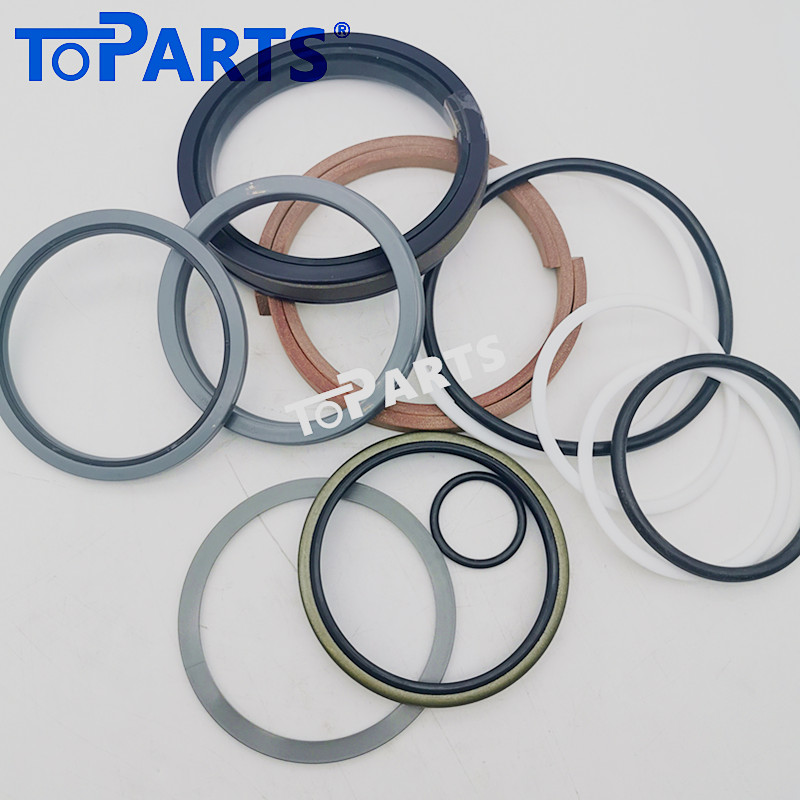

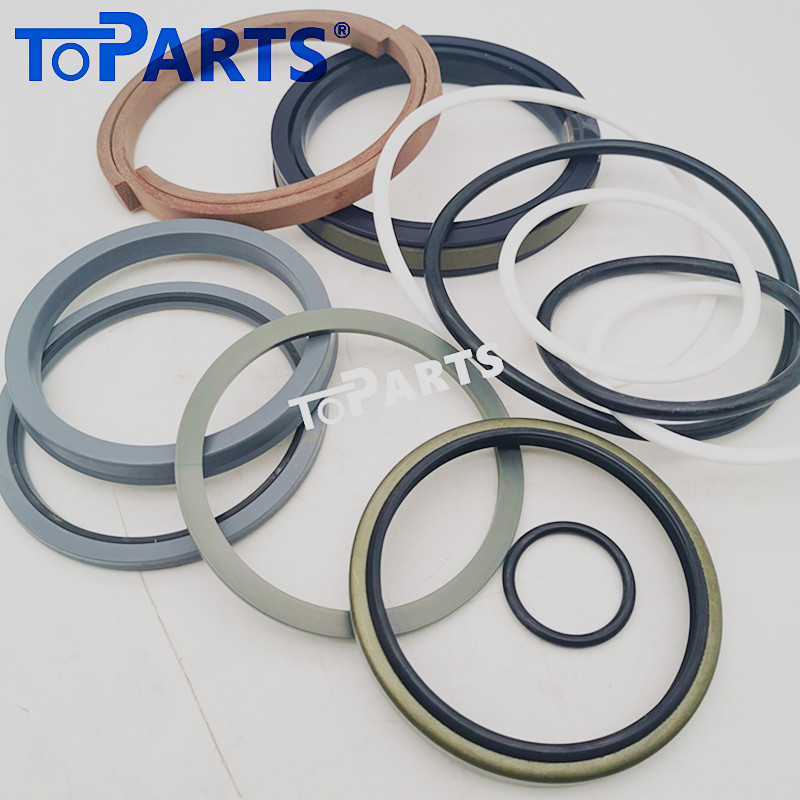

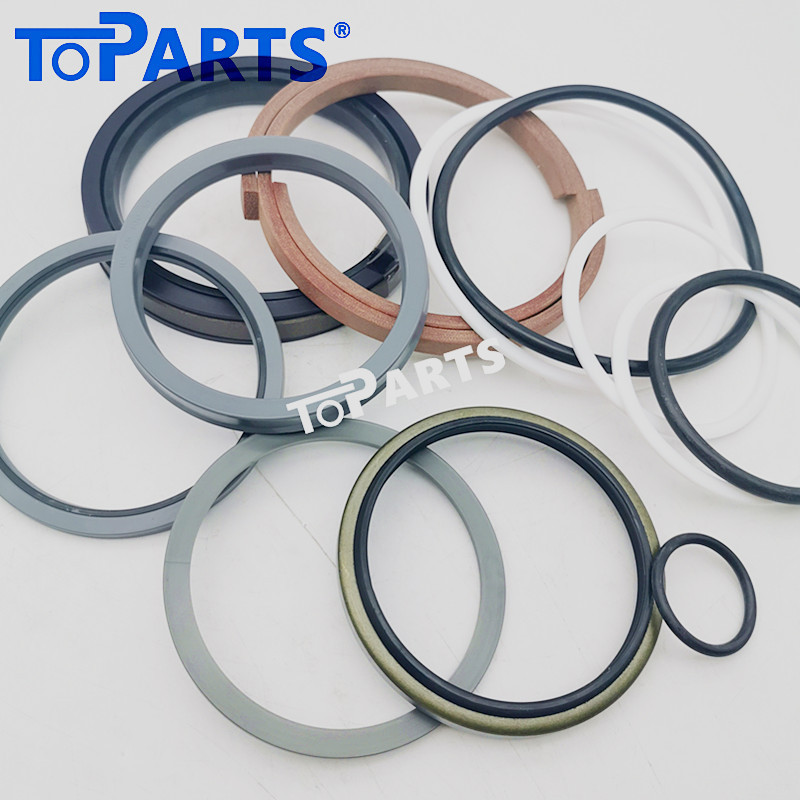

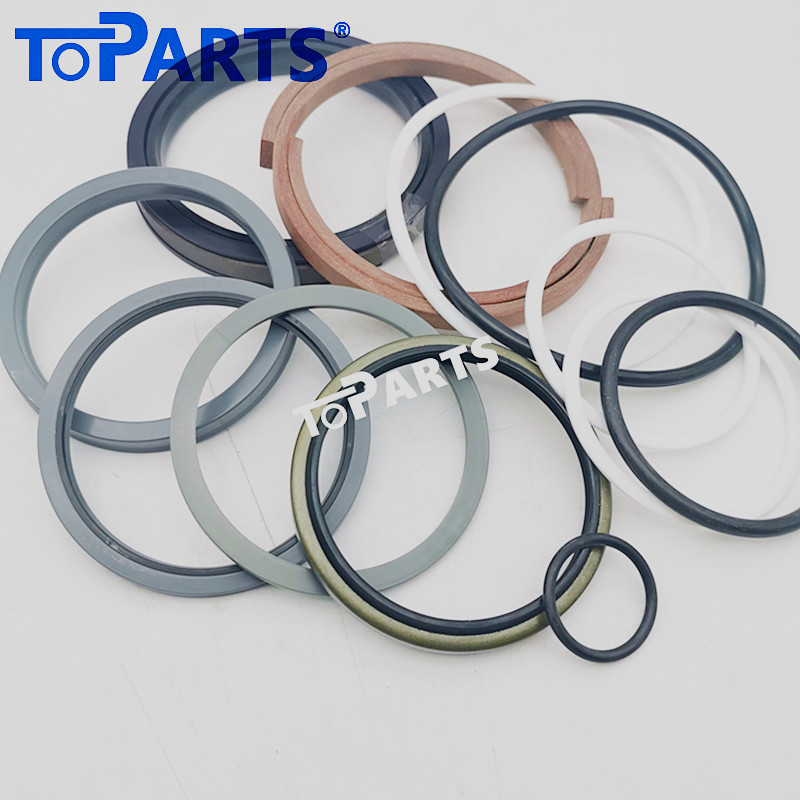

707-99-47130 Hydraulic Cylinder Seal Kit for Komatsu PC200-8 Excavator Hydraulic Bucket Cylinder Service Seal Kit

Description Review

Description

Model:KOMATSU PC200-8 Excavator hydraulic Bucket cylinder repair seal kit

Part number:707-99-47130

Cylinder No:707-01-0J080,707-01-XR140

Rod:85MM

Piston:125MM

For:KOMATSU PC200-8 hydraulic excavator hydraulic cylinder seal kit

Material:PU+NBR+PTFE

Certification: IOS 9001

Packaging Details: bag or box +carton

Delivery Time:2-5days upon payments confirmed

Brand:Toparts

Payment Terms:T/T, Western Union, MoneyGram,Paypal,Alipay

Supply Ability:500

MOQ:1set
Parts list

NO.	Number	Name	Qty
	707-01-XR140	CYLINDER GROUP	1
	707-01-0J080	CYLINDER ASS'Y	1
	707-13-12590	CYLINDER	1
	707-76-70651	BUSHING	1
	07145-00070	SEAL,DUST (KIT)	2
	707-58-85440	ROD,PISTON	1
	707-76-70120	BUSHING	1
	20Y-70-23220	SEAL,DUST (KIT)	2
7	707-27-12750	HEAD,CYLINDER	1
8	07179-13099	RING,SNAP	1
9	707-56-85510	SEAL,DUST (KIT)	1
10	707-52-90610	BUSHING	1
11	707-75-85110	RING	1
12	707-51-85030	PACKING,ROD (KIT)	1
13	07000-15115	O-RING (KIT)	1
14	707-35-91250	RING,BACK-UP (KIT)	1
15	707-51-85650	RING,BUFFER (KIT)	1
16	01010-81670	BOLT	12
17	01643-51645	WASHER	12
18	721-36-12030	PISTON	1
19	707-44-12250	RING,PISTON (KIT)	1
20	707-39-12560	RING,WEAR (KIT)	2
21	707-44-12921	RING	2
22	707-35-90930	RING,BACK-UP (KIT)	2
23	07000-15075	O-RING (KIT)	1
24	01310-01216	SCREW	1
25	07020-00000	FITTING,GREASE	1
26	07020-00000	FITTING,GREASE	1
27	707-86-67820	TUBE	1
28	07372-21060	BOLT	2
29	01643-51032	WASHER	2
30	07372-21045	BOLT	2
31	01643-51032	WASHER	2
32	07000-13030	O-RING (KIT)	1
33	707-88-22780	BRACKET	2
34	707-88-21530	BAND	2
35	07372-21035	BOLT	4
36	01643-51032	WASHER	4
37	07283-32738	CLIP	2
38	01597-01009	NUT	4
39	01643-31032	WASHER	4
40	707-88-33030	CAP	2
41	07371-30640	FLANGE,SPLIT	4
42	07372-21035	BOLT	8
43	01643-51032	WASHER	8
K	707-99-47130	SERVICE KIT	1

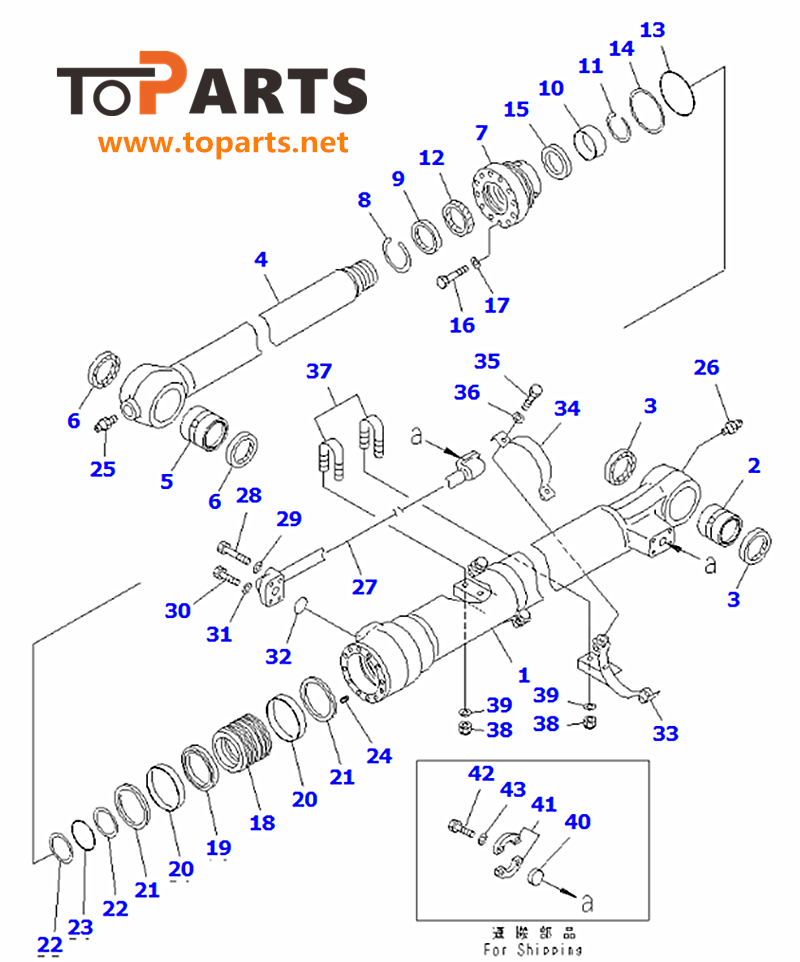

Exploded View

APPLICATION	CYL #	ROD	BORE	KIT #
MODEL PC1100-6
ARM (L/S)	21N-63-03120	130 mm		KOM-707-52-91070
	21N-63-03121	130 mm	185 mm	KOM-707-99-69670
	21N-63-03121	130 mm		KOM-707-52-91070
BOOM (B/H)	21N-63-02302	160 mm	225 mm	KOM-707-99-78700
	21N-63-02302	160 mm		KOM-707-52-91350
	21N-63-02303	160 mm	225 mm	KOM-707-99-78700
	21N-63-02303	160 mm		KOM-707-52-91350
BOOM (L/S)	21N-63-03100	160 mm	225 mm	KOM-707-99-78700
BOOM (L/S)	21N-63-03100	160 mm		KOM-707-52-91350
BOTTOM DUMP (L/S)	21N-63-03160	90 mm	140 mm	KOM-707-98-56210
BOTTOM DUMP (L/S)	21N-63-03160	90 mm		KOM-707-52-90650
BUCKET (B/H)	21N-63-02332	110 mm	160 mm	KOM-707-99-67290
	21N-63-02342	110 mm	160 mm	KOM-707-99-67290
	21N-63-02370	140 mm	200 mm	KOM-707-99-77120
	21N-63-02370	140 mm		KOM-707-52-11410
BUCKET (L/S)	21N-63-03140	140 mm	200 mm	KOM-707-98-77210
BUCKET (L/S)	21N-63-03140	140 mm		KOM-707-52-91150
BUCKET LH (B/H)	21N-63-02332	110 mm	160 mm	KOM-707-99-67290
BUCKET LH (B/H)	21N-63-02332	110 mm		KOM-707-52-90860
BUCKET RH (B/H)	21N-63-02342	110 mm	160 mm	KOM-707-99-67290
BUCKET RH (B/H)	21N-63-02342	110 mm		KOM-707-52-90860
MODEL PC1100SP-6
ARM	21N-63-02322	170 mm	250 mm	KOM-707-99-89220
BOOM	21N-63-02302	160 mm	225 mm	KOM-707-99-78700
BUCKET	21N-63-02351	110 mm	160 mm	KOM-707-99-67290
BUCKET	21N-63-02361	110 mm	160 mm	KOM-707-99-67290
MODEL PC1250-7
ARM (B/H)	21N-63-02322	170 mm	250 mm	KOM-707-99-89220
ARM (B/H)	21N-63-02324	170 mm	250 mm	KOM-707-99-89250
ARM (L/S)	21N-63-03121	130 mm	185 mm	KOM-707-99-69670
ARM (L/S)	21N-63-03121	130 mm		KOM-707-52-91070
BOOM (B/H)	21N-63-02303	160 mm	225 mm	KOM-707-99-78700
	21N-63-02303	160 mm		KOM-707-52-91350
	21N-63-02304	160 mm	225 mm	KOM-707-99-78740
	21N-63-02304	160 mm		KOM-707-52-91350
	21N-63-02304	160 mm	225 mm	KOM-707-99-78740
	21N-63-02304	160 mm		KOM-707-52-91350
BOOM (L/S)	21N-63-03100	160 mm	225 mm	KOM-707-99-78700
BOOM (L/S)	21N-63-03100	160 mm		KOM-707-52-91350
BOTTOM DUMP (L/S)	707-01-0E940	110 mm	160 mm	KOM-707-99-67090
BOTTOM DUMP (L/S)	707-01-0E940	110 mm		KOM-707-52-90850
BUCKET (B/H)	21N-63-02370	140 mm	200 mm	KOM-707-99-77120
	21N-63-02370	140 mm		KOM-707-52-11410
	21N-63-02371	140 mm	200 mm	KOM-707-99-77190
	21N-63-02371	140 mm		KOM-707-52-91150
BUCKET LH (B/H)	21N-63-02332	110 mm	160 mm	KOM-707-99-67290
	21N-63-02332	110 mm		KOM-707-52-90860
	21N-63-02333	110 mm	160 mm	KOM-707-99-67840
	21N-63-02333	110 mm		KOM-707-52-90860

707-99-47130 Hydraulic Cylinder Seal Kit for Komatsu PC200-8 Excavator: Keep Your Bucket Digging Strong

Is your Komatsu PC200-8 excavator's hydraulic bucket cylinder showing signs of wear, like leaks or reduced performance? Don't let a compromised seal slow down your operation. The 707-99-47130 Hydraulic Cylinder Seal Kit is the precise solution you need to restore your bucket cylinder to optimal working condition.

This service seal kit is specifically designed for the Komatsu PC200-8 hydraulic bucket cylinder, ensuring a perfect fit and reliable performance. Crafted with high-quality, durable materials, these seals are engineered to withstand the demanding conditions of excavation work, including high pressure, extreme temperatures, and abrasive environments.

Why choose the 707-99-47130 Seal Kit?

Exact Fit: Manufactured to Komatsu's specifications, guaranteeing seamless integration with your PC200-8 bucket cylinder.

Superior Durability: Made from premium materials that resist wear, tear, and leaks, extending the lifespan of your hydraulic components.

Restores Performance: Effectively seals the hydraulic system, preventing fluid loss, maintaining consistent pressure, and restoring your excavator's digging power and efficiency.

Cost-Effective Repair: A seal kit offers a more economical solution than replacing an entire hydraulic cylinder, getting your equipment back to work faster and within budget.

Reduces Downtime: By addressing leaks and performance issues promptly, you minimize costly operational delays and keep your projects on schedule.

Investing in the 707-99-47130 Hydraulic Cylinder Seal Kit means investing in the longevity and efficiency of your Komatsu PC200-8 excavator. Ensure your bucket cylinder operates flawlessly, allowing your machine to handle the toughest jobs with ease.

Keep your Komatsu PC200-8 performing at its peak. Replace worn seals with the genuine quality of the 707-99-47130 Hydraulic Cylinder Seal Kit.
Tag:Boom seal kit,hydraulic cylinder seals,Bucket seal kit,Komatsu Service Seal kit,Wheel loaders cylinder seal kit
