English
Parts list
|
no |
Part no |
Qty Antal |
Description |
|
1 |
3115 9153 90 |
1 |
O-RING SET |
|
2 |
3115 1880 90 |
1 |
SEAL KIT |
|
3 |
0666 7190 01 |
1 |
RADIAL LIP SEAL |
|
4 |
0686 4201 03 |
1 |
PLUG |
|
5 |
0653 9038 00 |
1 |
GASKET |
|
6 |
0544 2162 00 |
1 |
GREASE NIPPLE |
|
7 |
0666 7188 01 |
1 |
RADIAL LIP SEAL |
|
8 |
0667 1206 00 |
1 |
SEAL |
|
9 |
0661 1020 00 |
1 |
SEAL WASHER |
|
10 |
3115 0970 00 |
2 |
SEAL KIT |
|
11 |
3115 1697 00 |
2 |
SEAL WASHER |
|
12 |
0661 1034 00 |
2 |
SEAL WASHER |
|
13 |
3115 1156 00 |
2 |
SEAL KIT |
|
14 |
3115 0327 00 |
1 |
GASKET |
|
15 |
0665 1000 12 |
1 |
SEAL |
|
16 |
3115 2333 00 |
2 |
CUP SEAL |
|
17 |
3115 5190 00 |
1 |
CUP SEAL |
|
18 |
3115 2386 00 |
2 |
CUP SEAL |
|
19 |
3115 2693 00 |
1 |
CUP SEAL |
|
20 |
0663 2128 00 |
1 |
O-RING |
|
21 |
0661 1038 00 |
1 |
SEAL WASHER |
|
22 |
9125 6191 00 |
1 |
O-RING |
|
23 |
0663 2109 37 |
1 |
O-RING |
|
24 |
0663 2129 01 |
1 |
O-RING |
|
Part no |
Description |
Benämning |
Qty Antal |
|
8311 1247 43 |
ROCK DRILL |
BERGBORRMASKIN |
11 |
|
3115 2950 80 |
– FRONT HEAD COMP |
– UNDERDEL KOMPL |
17 |
|
3115 2950 83 |
– FRONT HEAD COMP |
– UNDERDEL KOMPL |
19 |
|
3115 2950 85 |
– FRONT HEAD COMP |
– UNDERDEL KOMPL |
21 |
|
3115 3018 82 |
– FRONT PART COMP |
– FRONTDEL KOMPL. |
23 |
|
3115 3451 81 |
– ACCUMULATOR |
– ACKUMULATOR |
25 |
|
3115 3511 81 |
– ACCUMULATOR |
– ACKUMULATOR |
27 |
|
3115 2615 91 |
– RETURN ACCUM. |
– RETURACKUMULAT. |
29 |
|
3115 3473 80 |
– HYDRAULIC MOTOR |
– HYDRAULMOTOR |
31 |
|
3115 3473 81 |
– HYDRAULIC MOTOR |
– HYDRAULMOTOR |
33 |
|
3115 3473 82 |
– HYDRAULIC MOTOR |
– HYDRAULMOTOR |
35 |
|
3115 3473 83 |
– HYDRAULIC MOTOR |
– HYDRAULMOTOR |
37 |
|
3115 3473 85 |
– HYDRAULIC MOTOR |
– HYDRAULMOTOR |
39 |
|
3115 9153 90 |
– O-RING SET |
– O-RINGSSATS |
41 |
|
3115 9150 96 |
– SEAL KIT |
– TÄTNINGSSATS |
43 |
|
3115 9153 90 |
– – O-RING SET |
– – O-RINGSSATS |
41 |
|
3115 9169 95 |
– SEAL KIT |
– TÄTNINGSSATS |
45 |
|
3115 9153 90 |
– – O-RING SET |
– – O-RINGSSATS |
41 |
|
3115 9169 96 |
– OVERHAUL KIT |
– RENOVERINGSSATS |
47 |
|
3115 9169 95 |
– – SEAL KIT |
– – TÄTNINGSSATS |
45 |
|
3115 9153 90 |
– – – O-RING SET |
– – – O-RINGSSATS |
41 |
|
3115 9169 97 |
– OVERHAUL KIT |
– RENOVERINGSSATS |
51 |
|
3115 9169 96 |
– – OVERHAUL KIT |
– – RENOVERINGSSATS |
47 |
|
3115 9169 95 |
– – – SEAL KIT |
– – – TÄTNINGSSATS |
45 |
|
3115 9153 90 |
– – – – O-RING SET |
– – – – O-RINGSSATS |
41 |
|
3115 9238 90 |
– OVERHAUL KIT |
– RENOVERINGSSATS |
53 |
|
3115 9150 96 |
– – SEAL KIT |
– – TÄTNINGSSATS |
43 |
|
|
|
|
|
|
3115 9153 90 |
– – – O-RING SET |
– – – O-RINGSSATS |
41 |
|
3115 2118 90 |
– REPAIR SET |
– REPARATIONSSATS |
57 |
|
3115 9238 90 |
– – OVERHAUL KIT |
– – RENOVERINGSSATS |
53 |
|
3115 9150 96 |
– – – SEAL KIT |
– – – TÄTNINGSSATS |
43 |
|
3115 9153 90 |
– – – – O-RING SET |
– – – – O-RINGSSATS |
41 |
|
3115 2119 90 |
– REPAIR SET |
– REPARATIONSSATS |
59 |
|
3115 9238 90 |
– – OVERHAUL KIT |
– – RENOVERINGSSATS |
53 |
|
3115 9150 96 |
– – – SEAL KIT |
– – – TÄTNINGSSATS |
43 |
|
3115 9153 90 |
– – – – O-RING SET |
– – – – O-RINGSSATS |
41 |
|
3115 3425 80 |
– CHARGIN DEVICE |
– LADDN.UTRUSTN. |
61 |
|
3115 3018 92 |
– CONVERSION KIT |
– OMBYGGNADSSATS |
63 |
|
3115 3018 82 |
– – FRONT PART COMP |
– – FRONTDEL KOMPL. |
23 |
|
3115 5042 90 |
– CONVERSION KIT |
– OMBYGGNADSSATS |
65 |
|
3115 5035 81 |
– – GEAR HOUSING |
– – VÄXELHUS |
67 |
|
– |
– – COVER GROUP |
– – LOCKGRUPP |
69 |
|
3115 5042 80 |
– – FRONT PART COMP |
– – FRONTDEL KOMPL. |
71 |
|

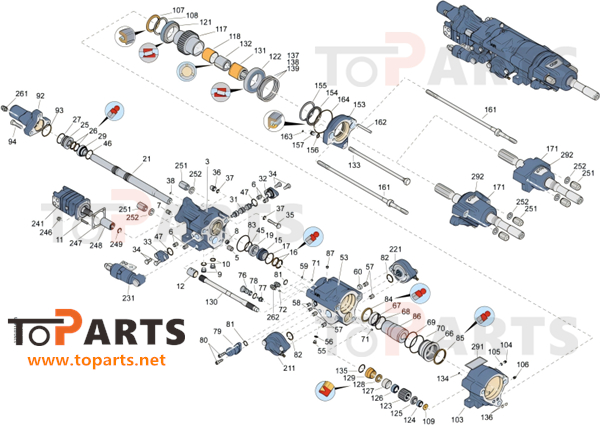

NO |
Part no |
Qty |
Description |
|
2 |
3115 1944 80 |
1 |
CYLINDER |
|
3 |
– |
1 |
CYLINDER |
|
5 |
0259 0311 00 |
1 |
THREAD INSERT |
|
6 |
0259 0011 00 |
4 |
THREAD INSERT |
|
7 |
0259 2061 00 |
3 |
THREAD INSERT |
|
8 |
3115 1825 00 |
1 |
PLUG |
|
9 |
0686 6447 04 |
2 |
PLUG |
|
10 |
0661 1034 00 |
2 |
SEAL WASHER |
|
11 |
3115 1165 00 |
4 |
STUD |
|
12 |
3115 2112 00 |
1 |
GUIDE |
|
14 |
3115 2766 80 |
1 |
SEAL HOUSE COMP |
|
15 |
|
1 |
SEAL HOUSING |
|
16 |
3115 0970 00 |
2 |
SEAL KIT |
|
17 |
0663 6136 00 |
1 |
O-RING |
|
19 |
3115 1671 00 |
1 |
PISTON GUIDE |
|
21 |
3115 2129 00 |
1 |
PISTON |
|
21 |
3115 3634 00 |
1 |
PISTON |
|
24 |
3115 2772 80 |
1 |
SEAL HOUSE COMP |
|
25 |
|
1 |
SEAL HOUSING |
|
26 |
3115 1156 00 |
2 |
SEAL KIT |
|
27 |
0663 6135 00 |
1 |
O-RING |
|
29 |
3115 1680 00 |
1 |
PISTON GUIDE |
|
31 |
3115 1765 00 |
1 |
VALVE PISTON |
|
32 |
3115 2077 03 |
1 |
VALVE COVER |
|
33 |
3115 2076 05 |
1 |
VALVE COVER |
|
34 |
0147 1438 03 |
4 |
SCREW, HEX HEAD |
|
35 |
3115 3291 00 |
1 |
REG. PLUG |
|
36 |
3115 3214 00 |
1 |
NUT |
|
37 |
3115 1697 00 |
2 |
SEAL WASHER |
|
38 |
3115 3245 00 |
1 |
SEAL RING |
|
45 |
0663 6134 01 |
1 |
O-RING |
|
46 |
0663 6134 01 |
1 |
O-RING |
|
47 |
0663 2133 01 |
1 |
O-RING |
|
48 |
0663 2133 01 |
1 |
O-RING |
|
52 |
3115 2583 81 |
1 |
INTERM. COMPL. |
|
53 |
3115 2583 45 |
1 |
INTERMED. PART |
|
54 |
– |
1 |
INTERMED. PART |
|
55 |
0686 6442 00 |
1 |
|
|
56 |
0661 1020 00 |
1 |
SEAL WASHER |
|
57 |
0259 2061 00 |
4 |
THREAD INSERT |
|
58 |
0259 0068 00 |
2 |
THREAD INSERT |
|
59 |
3115 1746 06 |
1 |
NOZZLE |
|
60 |
3115 2401 00 |
1 |
PLUG |
|
66 |
3115 3474 00 |
1 |
LINER |
|
67 |
3115 3744 00 |
1 |
BUSHING |
|
68 |
0335 3500 10 |
1 |
LOCK RING |
|
69 |
0663 2105 96 |
1 |
O-RING |
|
70 |
0663 2104 94 |
1 |
O-RING |
|
71 |
3115 1746 06 |
3 |
NOZZLE |
|
76 |
3115 2384 00 |
1 |
VALVE SEAT |
|
77 |
3115 2383 00 |
1 |
VALVE CONE |
|
78 |
0663 2129 01 |
1 |
O-RING |
|
79 |
3115 3455 00 |
1 |
CONNECT. PLATE |
|
80 |
0211 1960 84 |
2 |
SCREW |
|
81 |
0663 2100 62 |
2 |
O-RING |
|
82 |
3115 2988 00 |
2 |
SEAL RING |
|
83 |
0663 6143 00 |
1 |
O-RING |
|
84 |
3115 1879 00 |
1 |
SEAL KIT |
|
85 |
3115 1880 00 |
1 |
SEAL KIT |
|
86 |
3115 2971 00 |
1 |
DAMPING PISTON |
|
87 |
0686 9110 00 |
1 |
PROTECTION PLUG |
|
92 |
3115 3481 00 |
1 |
BACK HEAD |
|
93 |
0663 6138 00 |
1 |
O-RING |
|
94 |
0147 1481 03 |
3 |
SCREW, HEX HEAD |
|
102 |
3115 2340 80 |
1 |
GEAR HOUSING |
|
103 |
– |
1 |
GEAR HOUSING |
|
104 |
0686 4201 03 |
1 |
PLUG |
|
105 |
0653 9038 00 |
1 |
GASKET |
|
106 |
0544 2162 00 |
1 |
GREASE NIPPLE |
|
107 |
0666 7188 01 |
1 |
RADIAL LIP SEAL |
|
108 |
0335 2169 00 |
1 |
CIRCLIP |
|
109 |
3115 0273 00 |
1 |
WASHER |
|
116 |
3115 1732 81 |
1 |
ROT.CHUCK |
|
117 |
– |
1 |
ROT.CHUCK |
|
118 |
3115 1881 00 |
1 |
BUSHING |
|
121 |
0509 0221 00 |
1 |
ROLLER BEARING |
|
122 |
0509 0223 00 |
1 |
ROLLER BEARING |
|
123 |
3115 0274 00 |
1 |
GEAR WHEEL |
|
124 |
0516 1504 01 |
1 |
NEEDLE BEARING |
|
125 |
3115 0823 00 |
1 |
WASHER |
|
126 |
0516 1538 00 |
1 |
NEEDLE BEARING |
|
127 |
3115 0824 00 |
1 |
SLEEVE |
|
128 |
0667 1206 00 |
1 |
SEAL |
|
129 |
3115 2742 00 |
1 |
GUIDE SLEEVE |
|
130 |
3115 0821 00 |
1 |
SHAFT |
|
131 |
3115 1582 00 |
1 |
DRIVER |
|
132 |
3115 2968 00 |
1 |
ROT.CH.BUSHING |
|
133 |
3115 1457 00 |
1 |
SIDE BOLT |
|
134 |
3115 3245 00 |
1 |
SEAL RING |
|
135 |
0663 2133 01 |
1 |
O-RING |
|
136 |
0663 2120 00 |
2 |
O-RING |
|
137 |
3115 0297 01 |
1 |
SHIM |
|
138 |
3115 0297 02 |
1 |
SHIM |
|
139 |
3115 0297 03 |
1 |
SHIM |
|
152 |
3115 2949 81 |
1 |
COVER COMPL. |
|
153 |
– |
1 |
COVER |
|
154 |
0666 7190 01 |
1 |
RADIAL LIP SEAL |
|
155 |
0335 2173 00 |
1 |
CIRCLIP |
|
156 |
0661 1026 00 |
1 |
SEAL WASHER |
|
157 |
0686 3716 06 |
1 |
PLUG |
|
161 |
3115 2113 00 |
2 |
SIDE BOLT |
|
162 |
0102 0473 00 |
1 |
PIN |
|
163 |
3115 3245 00 |
1 |
SEAL RING |
|
164 |
0663 6151 00 |
1 |
O-RING |
|
171 |
3115 2950 80 |
1 |
FRONT HEAD COMP |
|
171 |
3115 2950 83 |
1 |
FRONT HEAD COMP |
|
171 |
3115 2950 85 |
1 |
FRONT HEAD COMP |
|
171 |
3115 3018 82 |
1 |
FRONT PART COMP |
|
211 |
3115 3451 81 |
1 |
ACCUMULATOR |
|
221 |
3115 3511 81 |
1 |
ACCUMULATOR |
|
231 |
3115 2615 91 |
1 |
RETURN ACCUM. |
|
241 |
3115 3473 80 |
1 |
HYDRAULIC MOTOR |
|
241 |
3115 3473 81 |
1 |
HYDRAULIC MOTOR |
|
241 |
3115 3473 82 |
1 |
HYDRAULIC MOTOR |
|
241 |
3115 3473 83 |
1 |
HYDRAULIC MOTOR |
|
241 |
3115 3473 85 |
1 |
HYDRAULIC MOTOR |
|
246 |
3115 3548 00 |
4 |
NUT |
|
247 |
3115 0327 00 |
1 |
GASKET |
|
248 |
3115 0277 00 |
1 |
COUPLING |
|
249 |
0335 2130 00 |
1 |
CIRCLIP |
|
251 |
3115 0286 00 |
4 |
DOME NUT |
|
252 |
3115 0287 00 |
4 |
WASHER |
|
261 |
3176 6514 00 |
1 |
NIPPLE |
|
262 |
3176 6512 00 |
2 |
NIPPLE |
|
291 |
3115 3164 00 |
1 |
LABEL |
|
292 |
3115 3308 00 |
1 |
LABEL |
|
|
0686 9250 26 |
2 |
PLUG |
|
0686 9250 27 |
2 |
PLUG |
|
|
3115 9153 90 |
1 |
O-RING SET |
|
|
3115 9150 96 |
1 |
SEAL KIT |
|
|
3115 9169 95 |
1 |
SEAL KIT |
|
|
3115 9169 96 |
1 |
OVERHAUL KIT |
|
|
3115 9169 97 |
1 |
OVERHAUL KIT |
|
|
3115 9238 90 |
1 |
OVERHAUL KIT |
|
|
3115 2118 90 |
1 |
REPAIR SET |
|
|
3115 2119 90 |
1 |
REPAIR SET |
|
|
3115 1603 91 |
1 |
NIPPLE SET |
|
|
0909 1071 00 |
1 |
LUBRICAT.GUN |
|
|
3115 3425 80 |
1 |
CHARGIN DEVICE |
|
|
3363 0345 67 |
1 |
GREASE PUMP |
|
|
9106 1015 40 |
1 |
TORQUE KEY |
|
|
9106 1015 41 |
1 |
TORQUE KEY |
|
|
3115 3018 92 |
1 |
CONVERSION KIT |
|
|
3115 3519 90 |
1 |
CONVERSION KIT |
|
|
3115 5042 90 |
1 |
CONVERSION KIT |
|
|
172 |
3115 2950 00 |
1 |
FRONT PART |
|
173 |
3115 3031 00 |
1 |
GUIDE |
|
174 |
3115 2120 00 |
1 |
FLUSHING HEAD |
|
175 |
3115 2333 00 |
2 |
CUP SEAL |
|
176 |
3115 5190 00 |
1 |
CUP SEAL |
|
177 |
3115 5152 00 |
1 |
CONNECT. PLATE |
|
178 |
0147 1401 03 |
4 |
SCREW, HEX HEAD |
|
179 |
3315 0195 08 |
4 |
LOCK WASHER |
|
180 |
0665 1000 12 |
1 |
SEAL |
|
181 |
3115 3245 00 |
1 |
SEAL RING |
|
185 |
3115 2122 00 |
1 |
STOP RING |
|
190 |
0663 2145 01 |
1 |
O-RING |
|
191 |
0663 2145 01 |
1 |
O-RING |
|
192 |
0663 2145 01 |
1 |
O-RING |
|
193 |
0663 2143 00 |
1 |
O-RING |
|
195 |
0663 2145 01 |
1 |
O-RING |
|
172 |
3115 2950 00 |
1 |
FRONT PART |
|
173 |
3115 2119 00 |
1 |
GUIDE |
|
174 |
3115 2121 00 |
1 |
FLUSHING HEAD |
|
175 |
3115 2386 00 |
2 |
CUP SEAL |
|
176 |
3115 2693 00 |
1 |
CUP SEAL |
|
177 |
3115 5152 00 |
1 |
CONNECT. PLATE |
|
178 |
0147 1401 03 |
4 |
SCREW, HEX HEAD |
|
179 |
3315 0195 08 |
4 |
LOCK WASHER |
|
180 |
0665 1000 12 |
1 |
SEAL |
|
181 |
3115 3245 00 |
1 |
SEAL RING |
|
185 |
3115 2123 80 |
1 |
STOP RING |
|
190 |
0663 2145 01 |
1 |
O-RING |
|
191 |
0663 2145 01 |
1 |
O-RING |
|
192 |
0663 2145 01 |
1 |
O-RING |
|
193 |
0663 2143 00 |
1 |
O-RING |
|
300 |
7490 5161 58 |
1 |
SHANK ADAPTER |
|
300 |
7490 5161 84 |
1 |
SHANK ADAPTER |
|
300 |
7490 5162 06 |
1 |
SHANK ADAPTER |
|
3115 2231 00 |
1 |
DRILL COLLAR |
|
|
3115 2232 00 |
1 |
DRILL COLLAR |
|
|
172 |
3115 2950 00 |
1 |
FRONT PART |
|
173 |
3115 3518 00 |
1 |
GUIDE |
|
174 |
3115 3519 00 |
1 |
FLUSHING HEAD |
|
175 |
3115 2385 00 |
3 |
CUP SEAL |
|
177 |
3115 5152 00 |
1 |
CONNECT. PLATE |
|
178 |
0147 1401 03 |
4 |
SCREW, HEX HEAD |
|
179 |
3315 0195 08 |
4 |
LOCK WASHER |
|
180 |
0665 1000 12 |
1 |
SEAL |
|
181 |
3115 3245 00 |
1 |
SEAL RING |
|
185 |
3115 3520 00 |
1 |
RETAINING RING |
|
190 |
0663 2145 01 |
1 |
O-RING |
|
191 |
0663 2145 01 |
1 |
O-RING |
|
192 |
0663 2145 01 |
1 |
O-RING |
|
193 |
0663 2143 00 |
1 |
O-RING |
|
195 |
0663 2145 01 |
1 |
O-RING |
|
300 |
7490 5156 66 |
1 |
SHANK ADAPTER |
|
300 |
7490 5161 30 |
1 |
SHANK ADAPTER |
|
3115 2232 00 |
1 |
DRILL COLLAR |
|
|
172 |
3115 3018 10 |
1 |
FRONT PART |
|
173 |
3115 3019 01 |
1 |
GUIDE |
|
174 |
3115 3022 01 |
1 |
FLUSHING HEAD |
|
175 |
3115 2333 00 |
3 |
CUP SEAL |
|
176 |
3115 3024 00 |
2 |
WIPER |
|
177 |
3115 3021 01 |
1 |
SPACER |
|
178 |
0102 0482 00 |
1 |
PIN |
|
181 |
3115 3245 00 |
2 |
SEAL RING |
|
185 |
3115 3020 01 |
1 |
STOP RING |
|
190 |
0663 2143 00 |
1 |
O-RING |
|
191 |
0663 2143 00 |
1 |
O-RING |
|
192 |
0663 2143 00 |
1 |
O-RING |
|
193 |
0663 2143 00 |
1 |
O-RING |
|
300 |
7490 5161 01 |
1 |
SHANK ADAPTER |
|
300 |
7490 5161 22 |
1 |
SHANK ADAPTER |
|
300 |
7490 5161 85 |
1 |
SHANK ADAPTER |
|
3115 2231 00 |
1 |
DRILL COLLAR |
|
|
|
3115 1870 00 |
1 |
PROTECTION PLUG |
|
1 |
– |
1 |
DIAPHRAGM COVER |
|
2 |
|
1 |
DIAPHRA.HOUSING |
|
3 |
3115 1822 01 |
1 |
DIAPHRAGM |
|
4 |
3115 0262 00 |
1 |
VALVE |
|
5 |
3115 2196 81 |
1 |
TEST VALVE |
|
9 |
3115 2714 90 |
1 |
LABEL SET |
|
10 |
3115 2702 10 |
2 |
SCREW |
|
11 |
3310 4076 00 |
1 |
CAP |
|
12 |
0663 9056 00 |
1 |
O-RING |
|
13 |
0663 6121 00 |
1 |
O-RING |
|
14 |
0663 2110 00 |
1 |
O-RING |
Exploded view

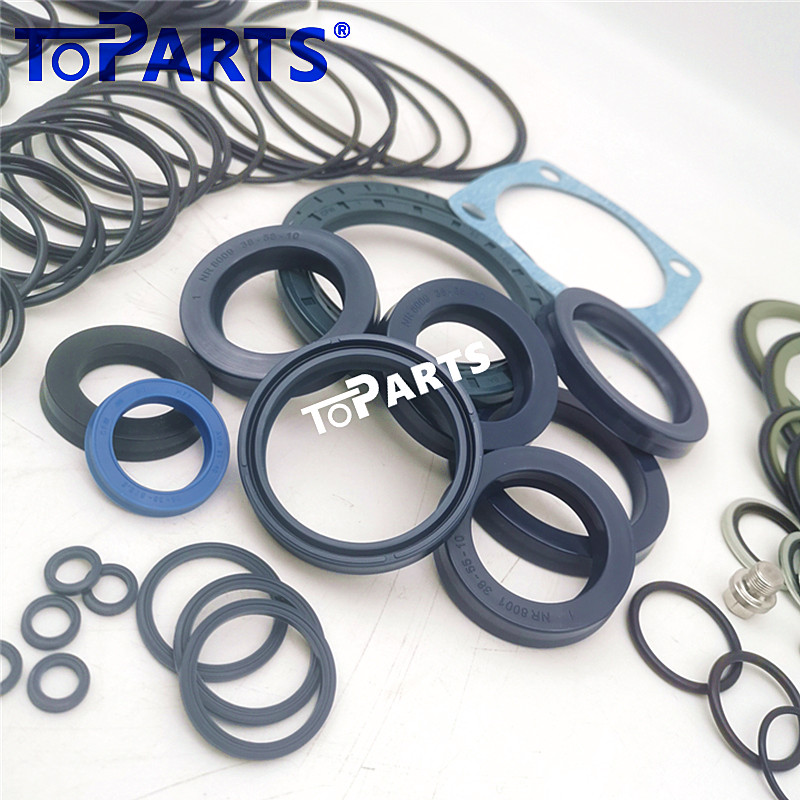

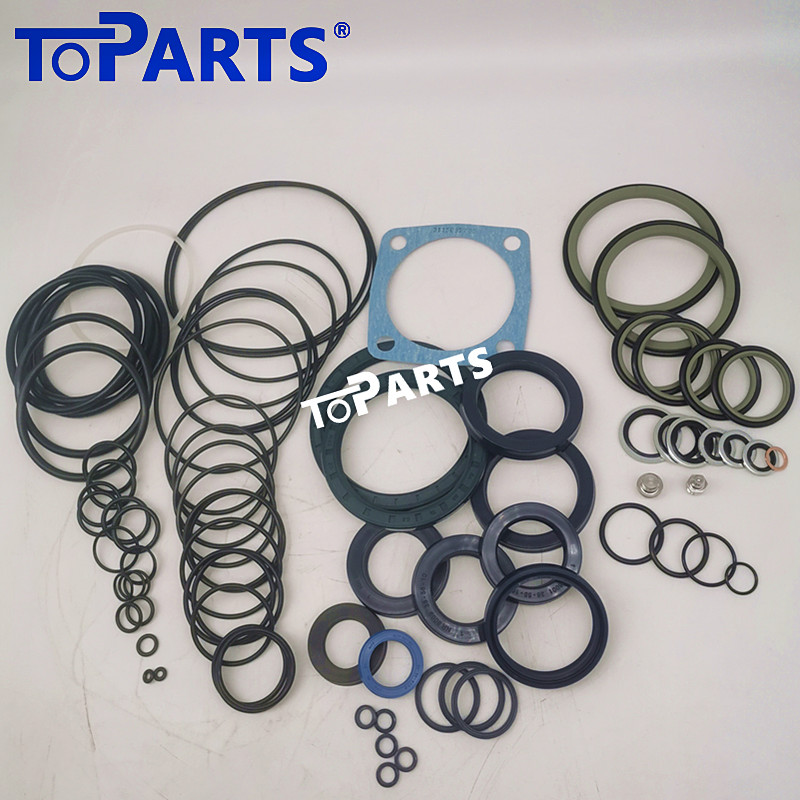

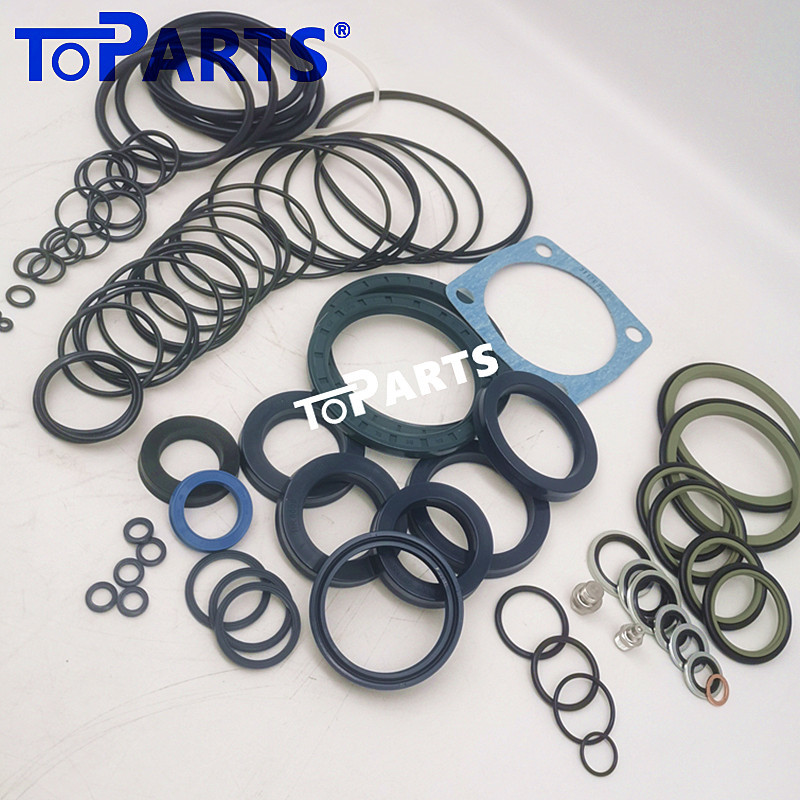

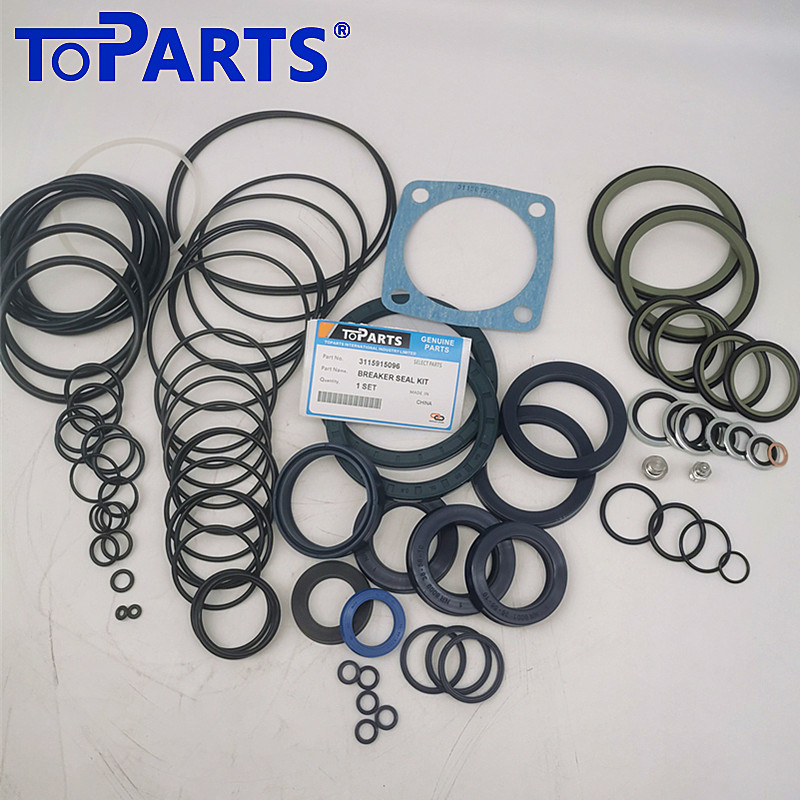

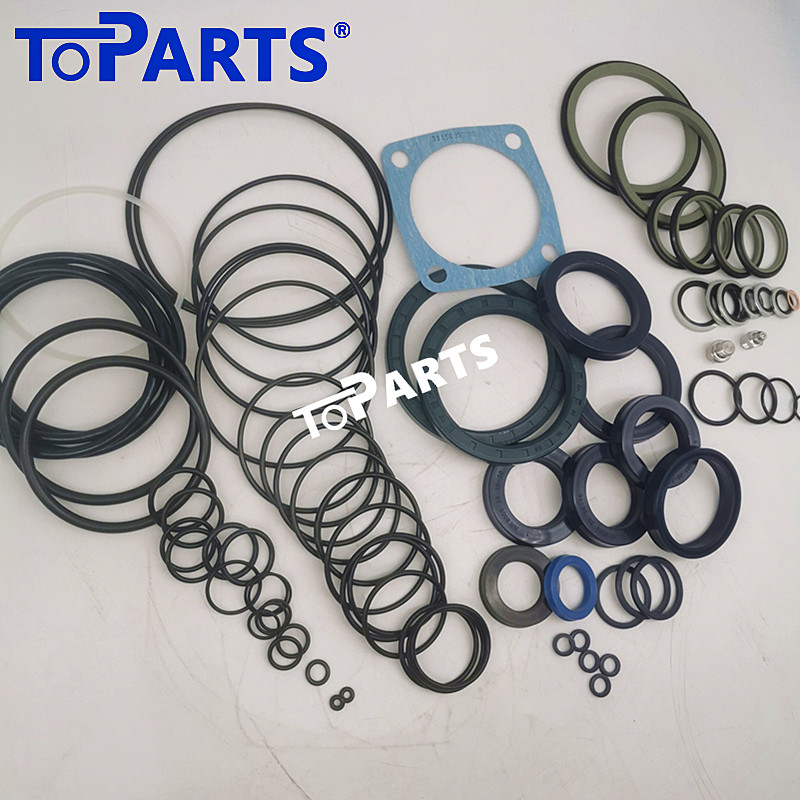

Toparts, a trusted name in high-performance industrial components, proudly introduces its premium Hydraulic Rock Drill Seal Kit (Part No. 3115915096), engineered specifically for Atlas Copco COP1838ME and COP1838HD rock drill models. Designed to deliver unmatched durability and reliability in harsh operating conditions, this seal kit ensures optimal performance and extended service life for your hydraulic rock drills.
Compatibility & Application
This seal kit is fully compatible with:
- Atlas Copco COP1838ME: A robust mid-range hydraulic rock drill renowned for efficient drilling in quarrying and construction.
- Atlas Copco COP1838HD: A heavy-duty variant built for demanding applications in mining and tunneling.
Ideal for maintenance professionals and equipment operators, the kit is widely used in industries such as mining, tunneling, construction, and quarrying, where hydraulic rock drills are subjected to extreme pressures, abrasion, and temperature fluctuations.
Key Features
-
Superior Material Quality:
- Seals and O-rings are crafted from advanced nitrile rubber (NBR) and polyurethane (PU), ensuring resistance to high pressures (up to 350 bar), temperatures (-30°C to +120°C), and hydraulic fluid degradation.
- Precision-machined metal components provide structural integrity and leak-proof performance.
-
Comprehensive Kit Contents:
- Includes piston seals, guide rings, buffer seals, and wear rings tailored to OEM specifications, guaranteeing seamless integration with COP1838ME/HD systems.
-
Enhanced Durability:
- Engineered to withstand abrasive particles and repetitive impact, reducing downtime and maintenance costs.
-
ISO-Certified Manufacturing:
- Produced in compliance with ISO 9001 standards, ensuring consistent quality and performance.
Why Choose Toparts?
- Cost-Effective Solution: Extend equipment lifespan while avoiding the premium cost of OEM parts.
- Global Stock Availability: Rapid delivery worldwide to minimize operational disruptions.
- Technical Support: Expert assistance for installation and troubleshooting.
Conclusion
Toparts’ Hydraulic Rock Drill Seal Kit (3115915096) is the smart choice for maintaining the efficiency and reliability of Atlas Copco COP1838ME/COP1838HD drills. Trust Toparts to keep your operations running smoothly in even the toughest environments.
Tag:Hydraulic breaker seal kit, Hydraulic hammer seal kit ,Atlas Copco Hydraulic breaker seal kit,Hydraulic breaker repair seal kit
