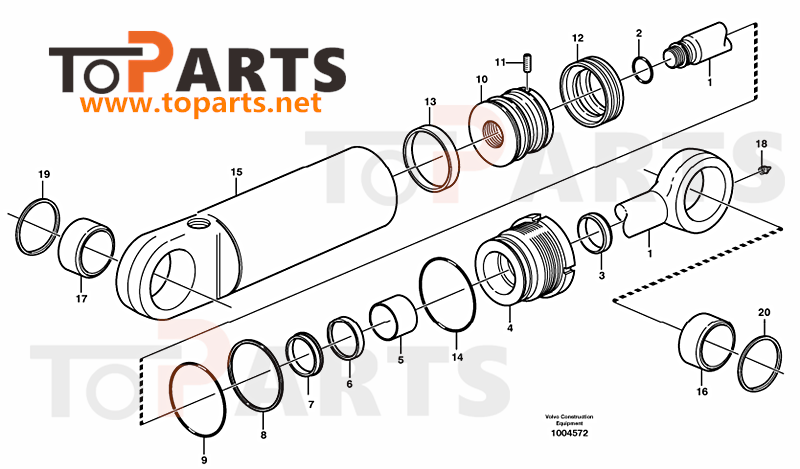

Parts list
|
NO. |
Product Name |
Quantity |
Product Name |
|
|
VOE11883976 |
|
Cylinder |
|
|
VOE11883975 |
1 |
Cylinder |
|
1 |
VOE11988262 |
1 |
•Piston rod |
|
2 |
|
1 |
•O-ring |
|
3 |
|
1 |
•Scraper |
|
4 |
VOE11709613 |
1 |
•Piston rod guide |
|
5 |
|
1 |
•Guide Ring |
|
6 |
|
1 |
•Piston Rod Seal |
|
7 |
|
1 |
•Lock Ring |
|
8 |
|
1 |
•Back-up ring |
|
9 |
|
1 |
•O-ring |
|
10 |
VOE11709614 |
1 |
•Piston |
|
11 |
|
1 |
•Screw |
|
12 |
|
1 |
•Piston seal |
|
13 |
|
1 |
•Guide Ring |
|
14 |
|
1 |
•O-ring |
|
15 |
|
1 |
•Cylinder tube |
|
16 |
VOE11711136 |
1 |
•Bushing |
|
17 |
VOE11988263 |
1 |
•Bushing |
|
18 |
VOE11709664 |
1 |
•Lubricating nipple |
|
19 |
VOE11709602 |
2 |
Scraper |
|
20 |
VOE11709616 |
2 |
Scraper |
|
|
VOE11709617 |
1 |
Sealing kit |

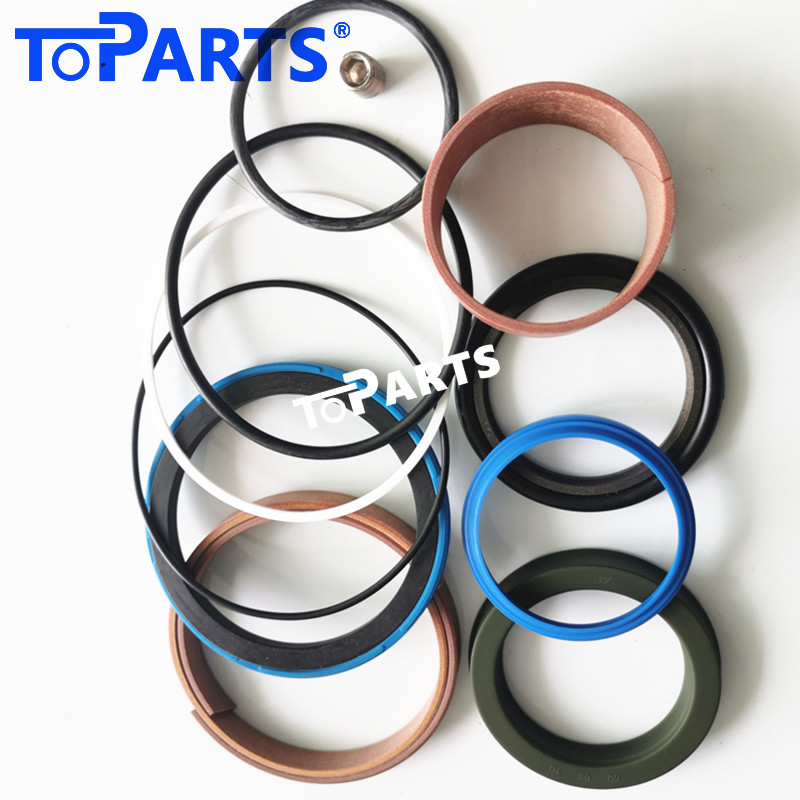

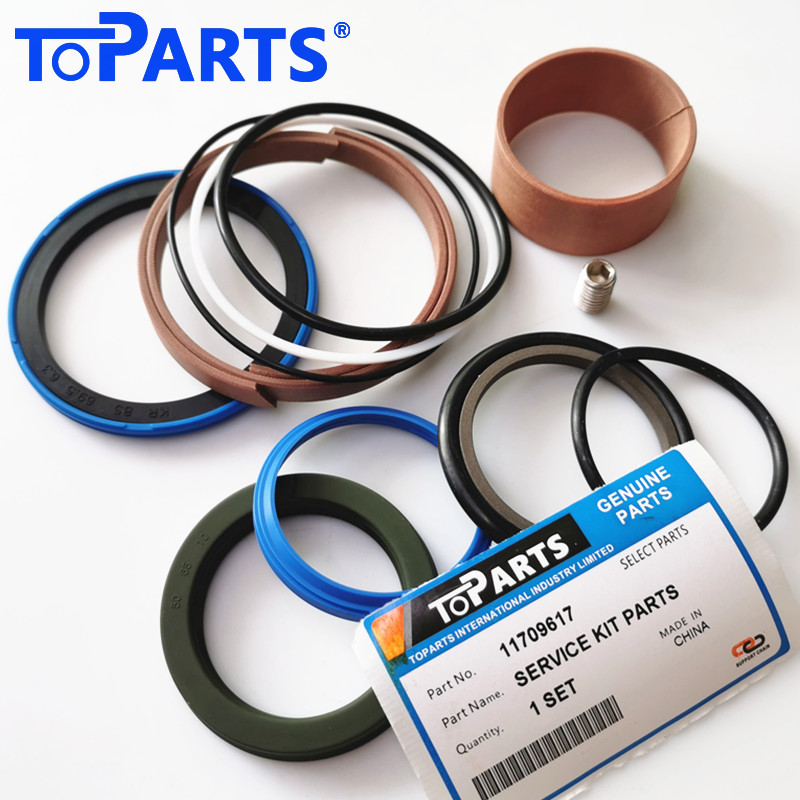

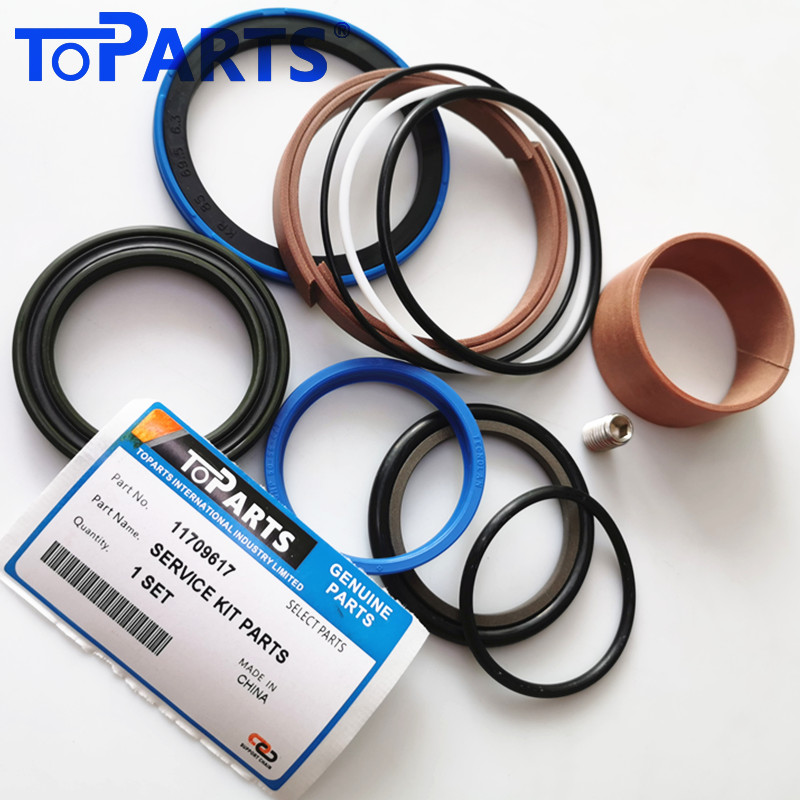

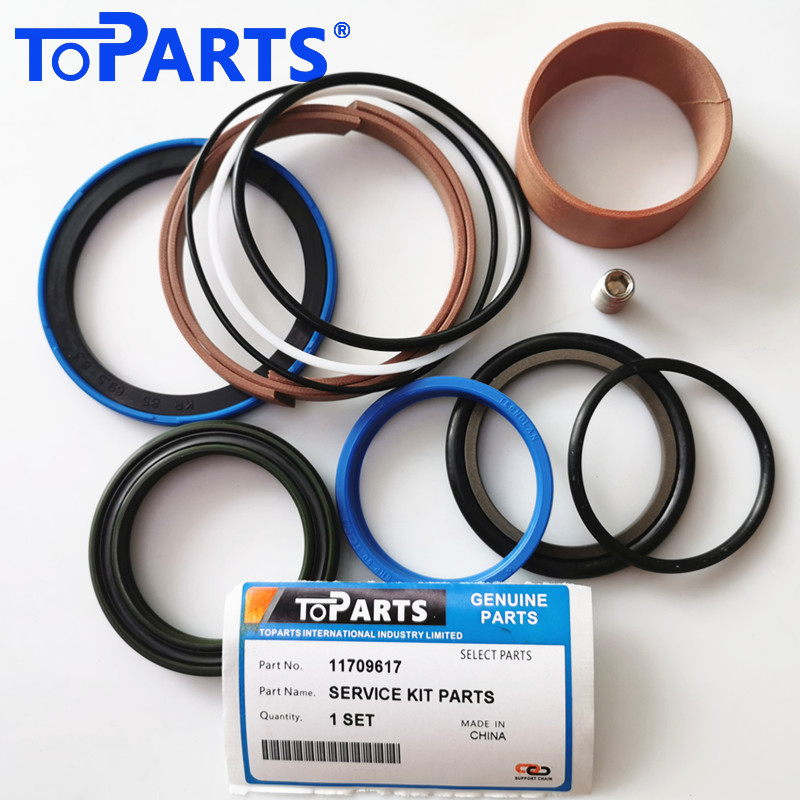

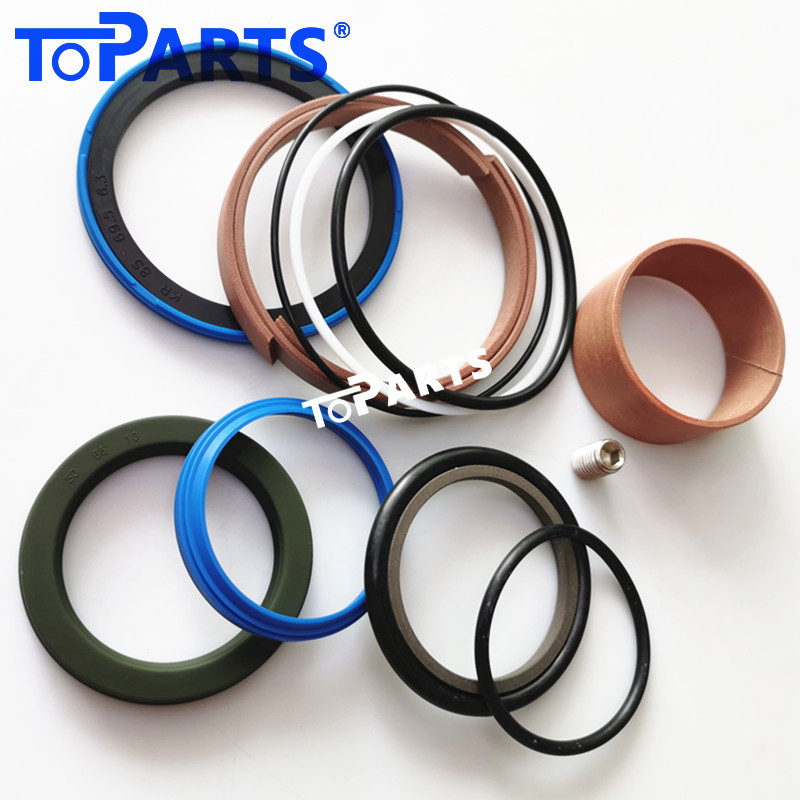

Toparts 11709617 / 11883976 Hydraulic Cylinder Seal Kit for Volvo BL61 Bucket Cylinder
Restore the breakout force and curling precision of your Volvo backhoe with the Toparts 11709617 (11883976) Hydraulic Seal Kit. Specifically engineered for the Volvo BL61 Backhoe Loader, this premium repair kit is designed to eliminate hydraulic drifting and external leaks in the Bucket (Tilt) Cylinder, ensuring your machine maintains maximum digging efficiency in the toughest soil and aggregate conditions.
Precision Sealing for Volvo BL-Series Productivity
The bucket cylinder is the most frequently cycled component during excavation and loading, making it highly susceptible to wear from pressure spikes and abrasive debris. Any loss in hydraulic integrity leads to "bucket creep" and slower cycle times. Toparts has developed the 11709617 kit using advanced elastomer technology to provide a perfect, long-lasting seal that prevents internal oil bypass, keeping your bucket movements crisp, powerful, and responsive.
Key Features and Benefits:
Dual OEM Compatibility: Fully matched to Volvo part numbers 11709617 and 11883976. Precision-engineered for an exact fit on the Bucket Cylinder of Volvo BL61 models.
Industrial-Grade Materials: Manufactured from high-tensile Polyurethane (PU) and specialized Nitrile Rubber (NBR). These materials offer exceptional resistance to tearing, high-pressure extrusion, and hydraulic fluid degradation.
Eliminates Hydraulic Drifting: By ensuring a perfect seal between the piston and cylinder wall, this kit prevents the bucket from uncurling under load, improving both safety and operational accuracy.
Advanced Contaminant Shielding: Includes a heavy-duty wiper seal designed to scrape away abrasive mud, grit, and moisture, protecting the expensive chrome rod and internal cylinder bore from scoring.
Thermal Resilience: Formulated to maintain elasticity and structural integrity across a wide temperature range, preventing seal failure during cold starts or high-heat, continuous shifts.
Complete Overhaul Solution: This all-in-one kit includes all necessary rod seals, piston seals, buffer seals, and O-rings required for a professional-grade cylinder rebuild.
Product Specifications:
Feature:Details
Part Number:11709617 / 11883976
Compatible Model:Volvo BL61 Backhoe Loader
Application:Bucket (Tilt) Hydraulic Cylinder
Material Grade:Industrial Strength PU, NBR, and Reinforced Phenolic
Working Pressure:Optimized for Volvo High-Pressure Systems
Manufacturer:Toparts
Why Choose Toparts?
Toparts is a leading global specialist in high-performance sealing solutions for earthmoving and construction equipment. We understand that in the field, uptime is your greatest asset. Our Volvo BL61 bucket cylinder seal kit provides the perfect balance of OEM-standard durability and exceptional aftermarket value, ensuring your backhoe loader remains a reliable and profitable part of your fleet.
Would you like me to check the availability of the matching Boom, Dipper (Arm), or Stabilizer cylinder seal kits for your Volvo BL61 to complete a full hydraulic system service?
